AAC Block Production Line

Automated Production · Precise Batching · High Efficiency · Consistent Quality

1. Product Overview

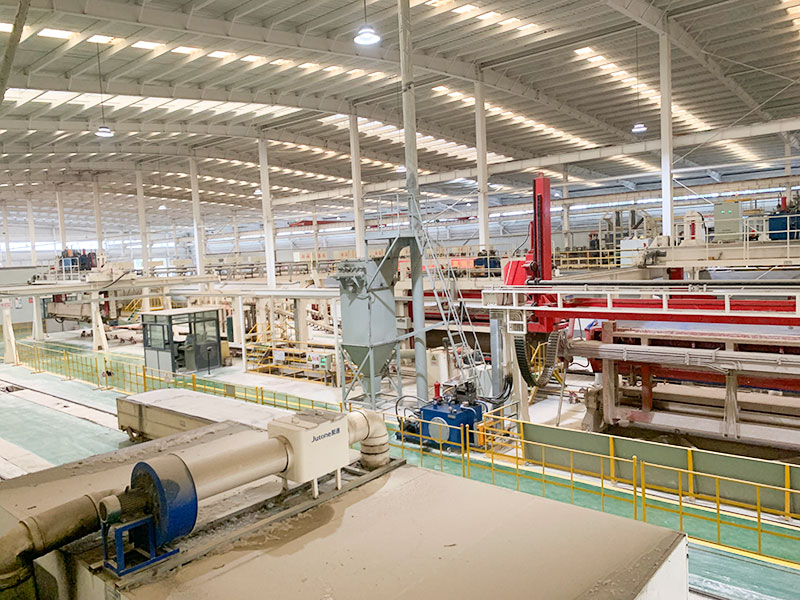

Our AAC Block Production Line is an integrated and highly efficient manufacturing system designed for the large-scale production of high-quality Autoclaved Aerated Concrete (AAC) Blocks.

The complete production process integrates raw material preparation, batching and weighing, mixing, casting, pre-curing, demolding, cutting, autoclaving, and finished-product handling. With automated process control and coordinated equipment operation, the production line delivers stable operation, high production efficiency, accurate product dimensions, and consistent quality.

AAC blocks are lightweight, durable, fire-resistant, and provide excellent thermal and acoustic insulation. They are widely used as an energy-efficient building material in residential, commercial, industrial, and public construction projects.

2. Key Features

High Production Efficiency

The production line uses automated material handling and coordinated processing equipment to reduce manual intervention, shorten production cycles, and improve overall productivity.

Precise Material Batching

Cement, lime, fly ash or sand, gypsum, aluminum powder, and other raw materials are accurately weighed and dosed according to the preset formulation, helping maintain stable product performance.

Uniform Mixing

The high-efficiency mixing system ensures that all raw materials are thoroughly and evenly blended, contributing to uniform slurry quality and stable product density.

Stable Casting and Expansion

The casting system accurately transfers the prepared slurry into molds. Controlled expansion and pre-curing provide the required green strength for subsequent demolding and cutting.

High-Precision Cutting

The green AAC cake is precisely cut into blocks of the required dimensions. Automated cutting helps maintain dimensional accuracy and smooth surfaces.

High-Pressure Autoclaving

AAC blocks are cured inside autoclaves under controlled high-temperature and high-pressure steam conditions. The autoclaving process improves strength, dimensional stability, and long-term durability.

Intelligent Control

A centralized control system monitors and coordinates the main production processes, supporting automatic operation, parameter adjustment, production monitoring, and fault alarms.

3. AAC Block Production Process

The typical production process is:

Raw Material Preparation → Grinding → Batching & Weighing → Mixing → Casting → Pre-Curing → Demolding → Cutting → Autoclaving → Finished Product Handling → Packaging & Storage

Each stage is carefully coordinated to achieve stable production and reliable product quality.

4. Raw Material Preparation

AAC block production generally uses the following raw materials:

• Cement

• Lime

• Fly ash

• Silica sand

• Gypsum

• Aluminum powder or aluminum paste

• Water

The exact material formulation can be adjusted according to local raw material characteristics, product density, required strength, and applicable production standards.

Raw Material Preparation Equipment

Depending on the production process, the system may include:

• Jaw crusher or hammer crusher

• Ball mill

• Raw material storage bins

• Cement and lime silos

• Screw conveyors

• Bucket elevators

• Material conveying systems

Proper raw material preparation ensures consistent particle size and stable material quality before batching.

5. Main Equipment

5.1 Batching and Weighing System

The batching system accurately measures different raw materials according to the production formula. Automatic weighing improves batching accuracy and reduces variations caused by manual operation.

5.2 AAC Mixing System

The mixer combines the prepared raw materials with water and other additives to produce a homogeneous slurry with consistent density and viscosity.

5.3 Casting System

The prepared slurry is automatically poured into molds. Proper casting control ensures uniform filling and stable expansion during the pre-curing stage.

5.4 Pre-Curing System

After casting, the slurry undergoes a controlled pre-curing process. During this stage, the aluminum-based expansion reaction creates the characteristic porous structure of AAC and provides sufficient green strength for cutting.

5.5 Demolding System

When the required green strength is reached, the mold is opened or removed through the demolding system, allowing the green cake to enter the cutting process.

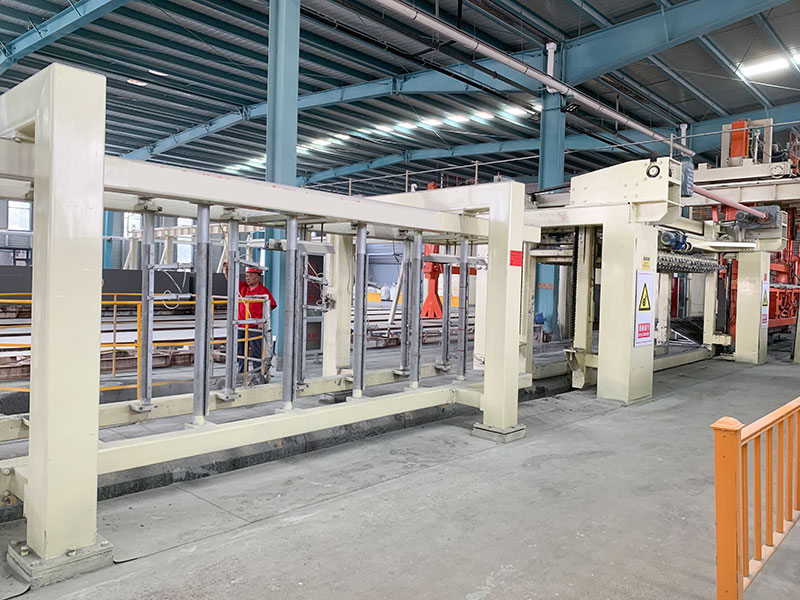

5.6 Cutting System

The green cake is cut horizontally and vertically into blocks according to the required dimensions. High-precision cutting technology helps produce uniform AAC blocks with consistent size and shape.

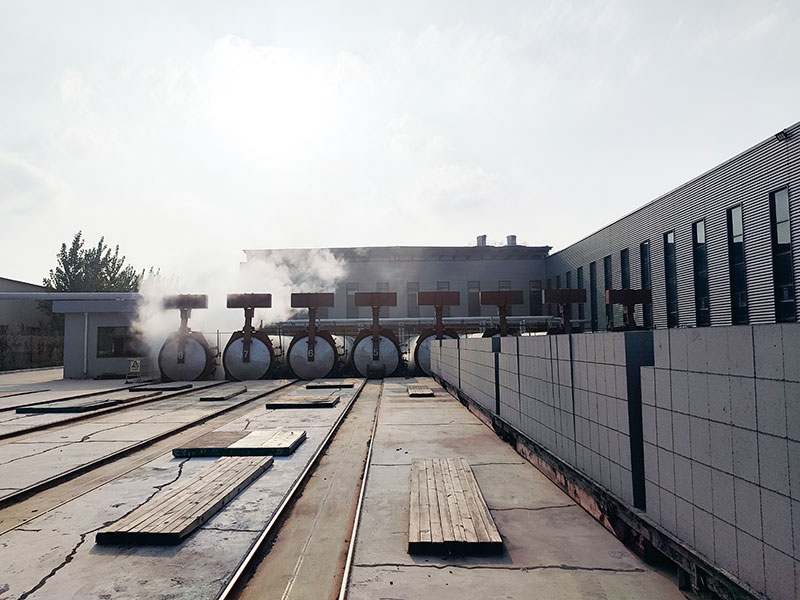

5.7 Autoclave System

The cut AAC products are transferred into autoclaves for high-pressure steam curing. Controlled temperature, pressure, and curing time promote the formation of stable calcium silicate hydrate structures and improve the final mechanical properties of the blocks.

5.8 Finished Product Handling System

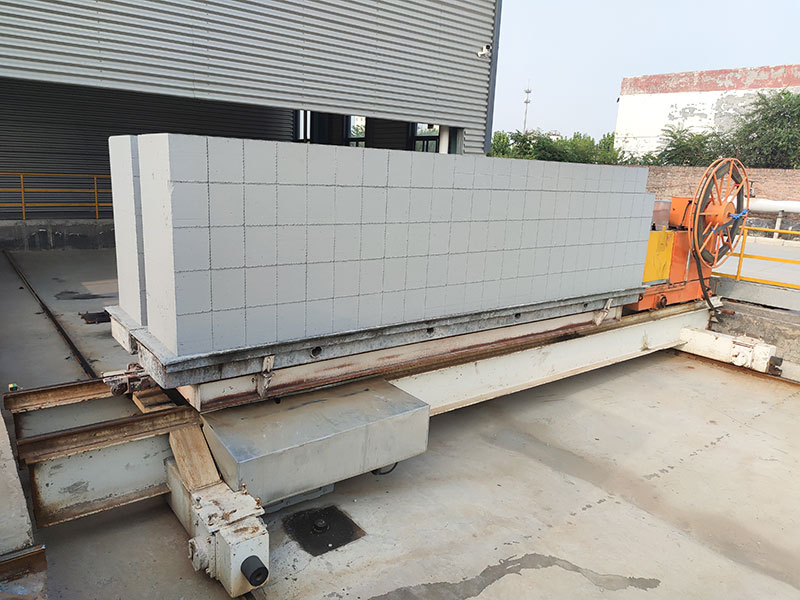

After autoclaving, the finished AAC blocks are transported, separated, stacked, packaged, and transferred to the storage area through appropriate handling equipment.

6. Product Advantages

Lightweight

AAC blocks are significantly lighter than conventional concrete blocks, which can reduce building dead load and facilitate transportation and installation.

Excellent Thermal Insulation

The porous internal structure of AAC provides good thermal insulation performance, helping improve building energy efficiency.

Fire Resistant

AAC is a non-combustible inorganic material and offers excellent fire resistance, making it suitable for applications where fire safety is an important consideration.

Good Acoustic Performance

The cellular structure of AAC provides useful sound insulation properties, making AAC blocks suitable for both residential and commercial buildings.

High Dimensional Accuracy

Precision cutting technology ensures consistent dimensions and helps reduce material consumption and construction adjustment during installation.

Fast Construction

AAC blocks are lightweight and easy to handle, which can improve masonry efficiency and reduce labor requirements on construction sites.

Environmentally Friendly

AAC production can use industrial by-products such as fly ash as part of the raw material system. The lightweight nature of AAC can also contribute to reduced structural material consumption.

7. Applications

AAC blocks produced by this production line can be widely used in:

• Residential buildings

• Commercial buildings

• Industrial plants

• Warehouses

• Office buildings

• Hotels

• Schools

• Hospitals

• Public buildings

• Partition walls

• Exterior wall systems

• Interior walls

• Non-load-bearing wall applications

The appropriate AAC block specification should be selected according to structural requirements, local building codes, and project conditions.

8. Quality Control

The production line provides process control throughout manufacturing to maintain consistent product quality.

Key quality-control stages include:

• Raw material inspection

• Material batching accuracy

• Slurry mixing control

• Slurry density monitoring

• Casting and expansion control

• Pre-curing temperature and time

• Cutting dimensional accuracy

• Autoclave temperature and pressure

• Finished product inspection

This integrated control system helps manufacturers maintain stable block density, dimensions, strength, and overall product performance.

9. Intelligent Control System

The centralized electrical control system provides comprehensive monitoring and management of the production line.

Typical Functions

• Automatic production control

• Recipe management

• Automatic batching and weighing

• Equipment status monitoring

• Production parameter adjustment

• Fault and alarm indication

• Data recording

• Manual and automatic operation modes

The intelligent control system simplifies operation, improves production consistency, and helps reduce human error.

10. Production Capacity & Flexible Configuration

AAC block production lines can be designed according to different production capacity requirements, factory areas, investment budgets, and local market demand.

Possible configuration options include:

• Small and medium-scale production lines

• Large-scale automated production lines

• Different block density grades

• Customized block dimensions

• Different raw material systems

• Different automation levels

• Customized factory layouts

• Energy-saving equipment configurations

The final equipment configuration should be determined based on the required annual output, local raw materials, product specifications, and factory conditions.

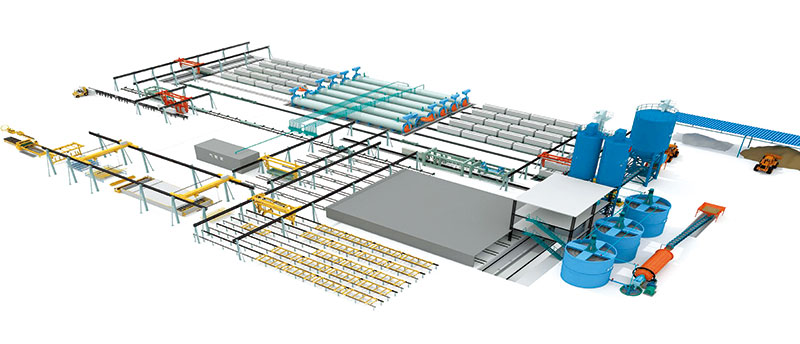

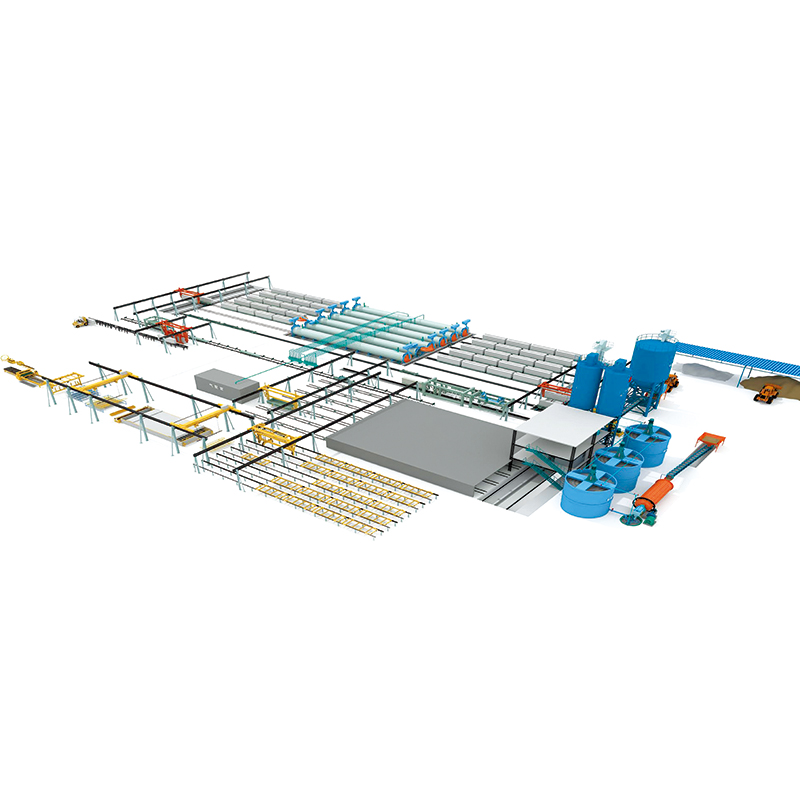

11. Factory Layout

A complete AAC block production plant generally includes the following functional areas:

Raw Material Storage Area → Crushing & Grinding Area → Batching Area → Mixing & Casting Area → Pre-Curing Area → Cutting Area → Autoclave Area → Finished Product Handling Area → Packaging & Storage Area

A properly designed plant layout helps optimize material flow, reduce unnecessary transportation, improve operational efficiency, and make equipment maintenance easier.

12. Installation & Technical Support

We provide professional technical support throughout the project, including:

Process Design → Equipment Manufacturing → Factory Layout Planning → Installation Guidance → Commissioning → Operator Training → Technical Support

Our technical team can assist customers with production line setup, equipment commissioning, operating procedures, and routine maintenance.

13. Why Choose Our AAC Block Production Line?

• Complete AAC block production solution

• High level of automation

• Accurate material batching

• Efficient mixing and casting

• High-precision cutting

• Reliable autoclave curing

• Stable and consistent product quality

• Flexible production capacity

• Customized plant configuration

• Professional technical support

14. Conclusion

Our AAC Block Production Line combines advanced material handling technology, accurate batching, efficient mixing, precision cutting, and high-pressure autoclave curing to create a complete and reliable solution for AAC block manufacturing.

From raw material preparation to finished product handling, every production stage is designed to improve efficiency, maintain consistent product quality, and support stable long-term operation.

With their lightweight structure, excellent thermal insulation, fire resistance, and convenient construction characteristics, AAC blocks have become an important solution for modern energy-efficient building construction.

Build Efficiently with AAC. Produce Better Blocks with Advanced Manufacturing Technology.
