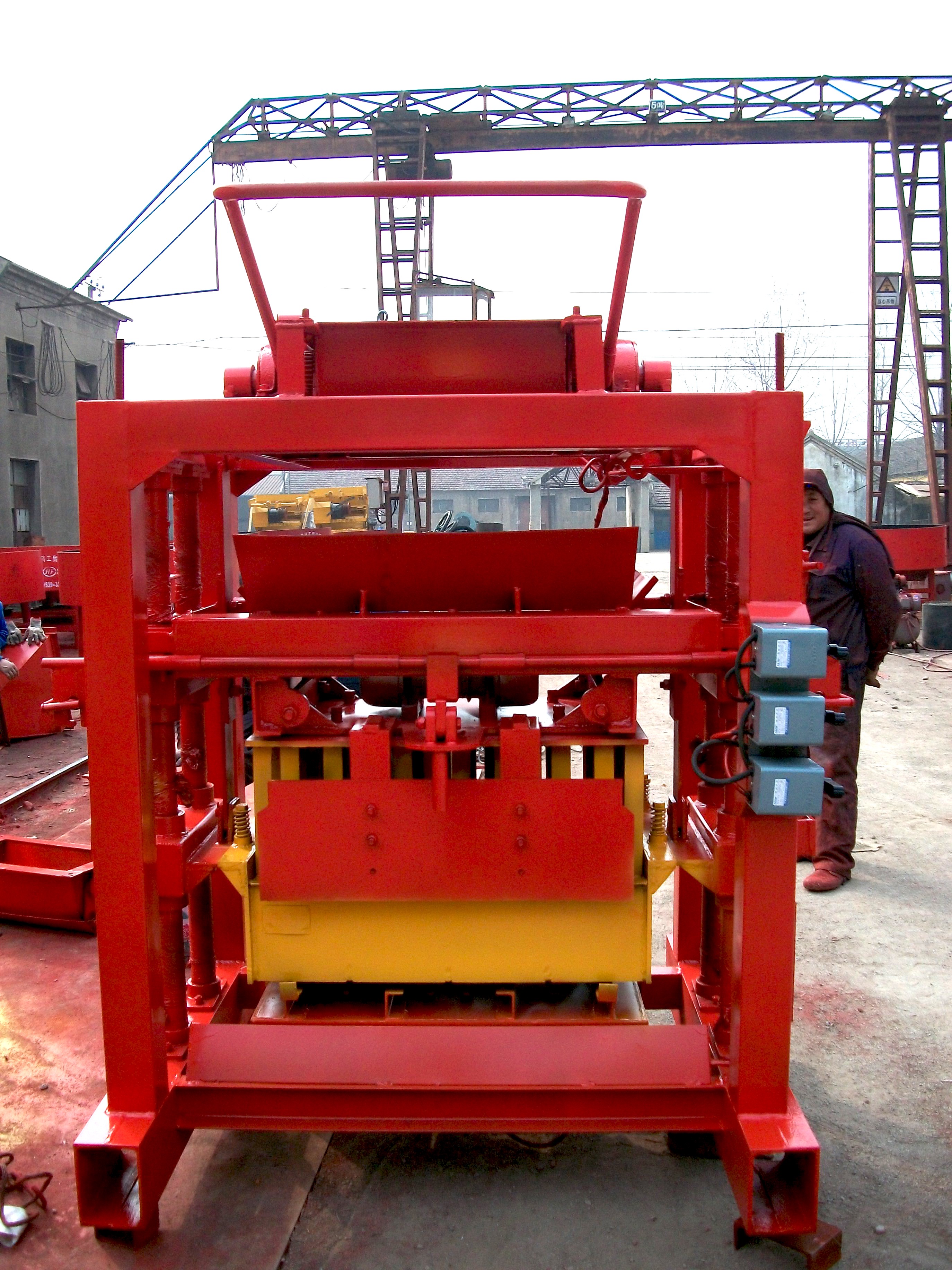

QT4-35 Small-Sized Block Machine Series

Compact Design · Strong Vibration · Easy Operation · Wide Material Compatibility

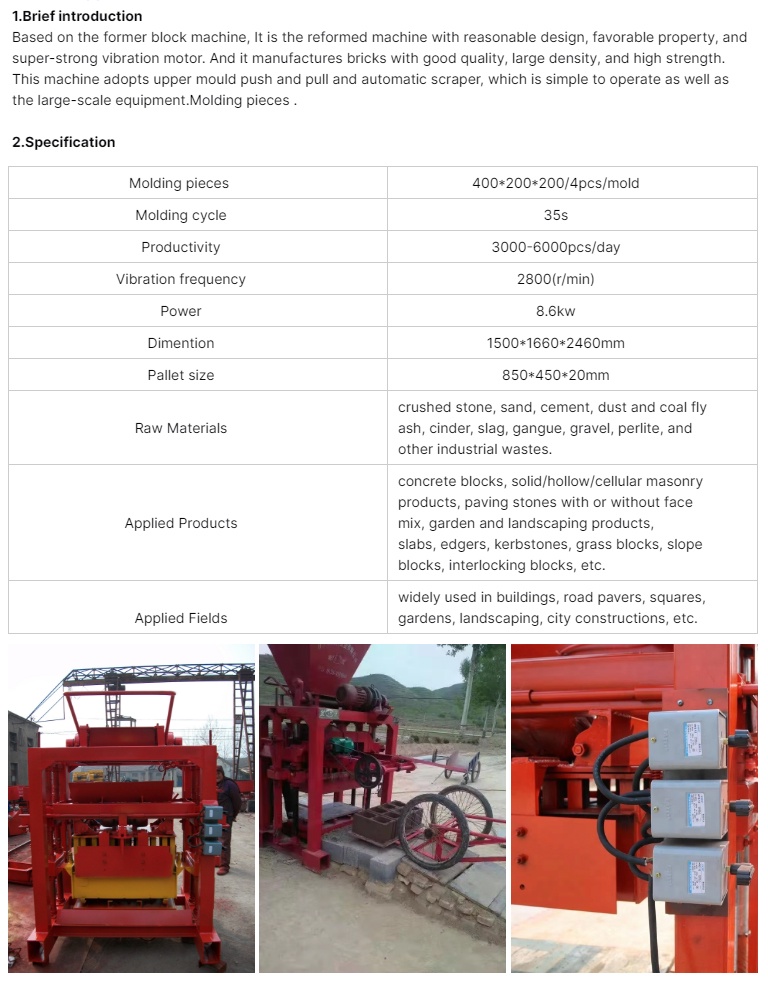

1. Product Overview

The QT4-35 Small-Sized Block Machine Series is a practical and reliable solution for small- and medium-scale concrete block production. Based on a simple mechanical structure and efficient vibration forming technology, the series is designed to provide stable operation, convenient maintenance, and flexible production.

The QT4-35 series can be operated as a standalone machine or combined with a concrete mixer, belt conveyor, and other auxiliary equipment to form a simple block production line.

By changing molds, the machine can produce different types and sizes of concrete masonry products to meet various construction and landscaping requirements.

2. Key Features

Strong Vibration Forming

The QT4-35 series uses an upper and lower vibration system to improve concrete compaction and product density. Proper vibration time and material distribution help achieve uniform and stable block forming.

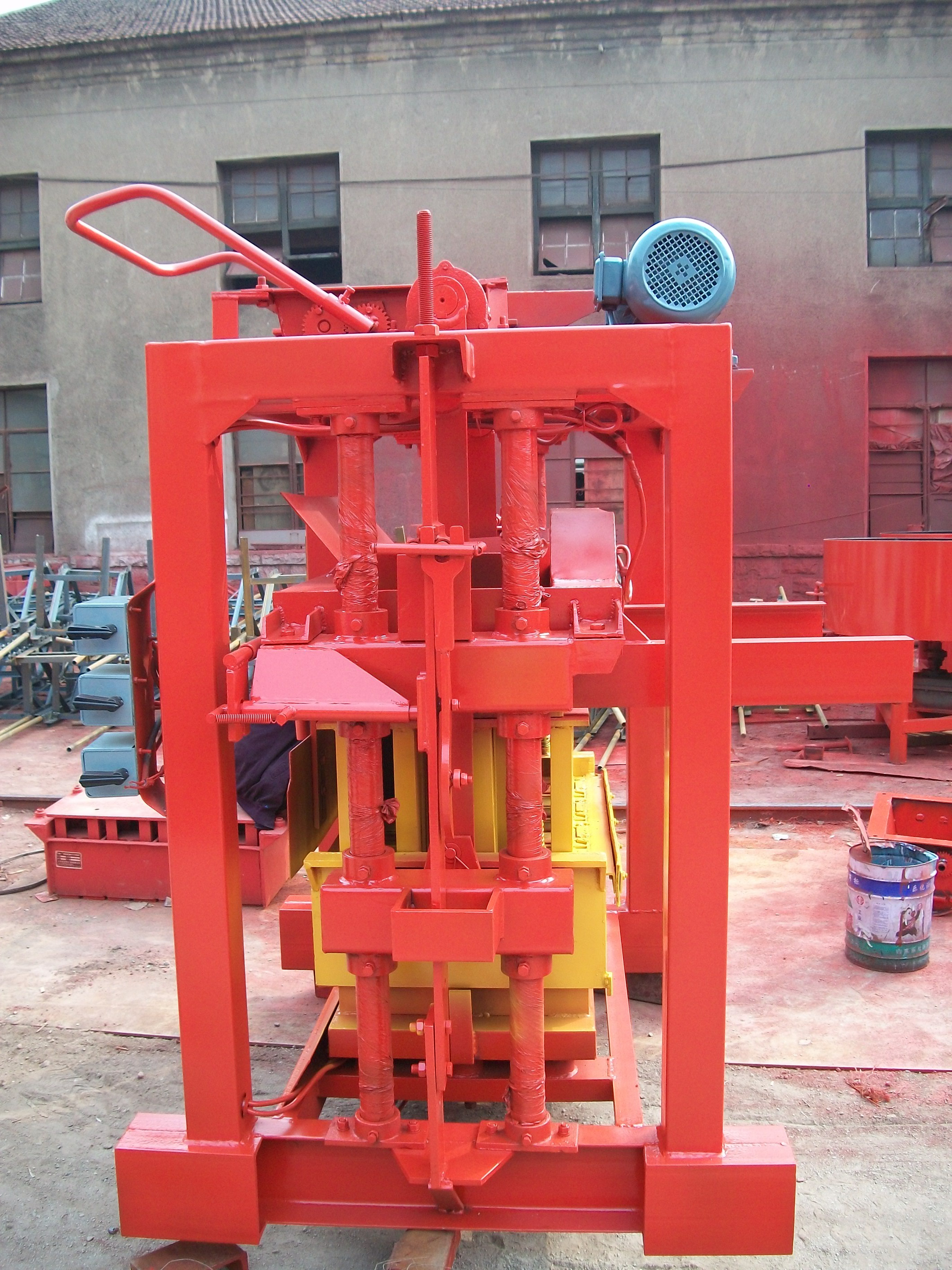

Simple Mechanical Structure

The machine features a straightforward structure integrating feeding, mold forming, lifting, vibration, and demolding systems. This makes the equipment easy to operate and convenient for routine inspection and maintenance.

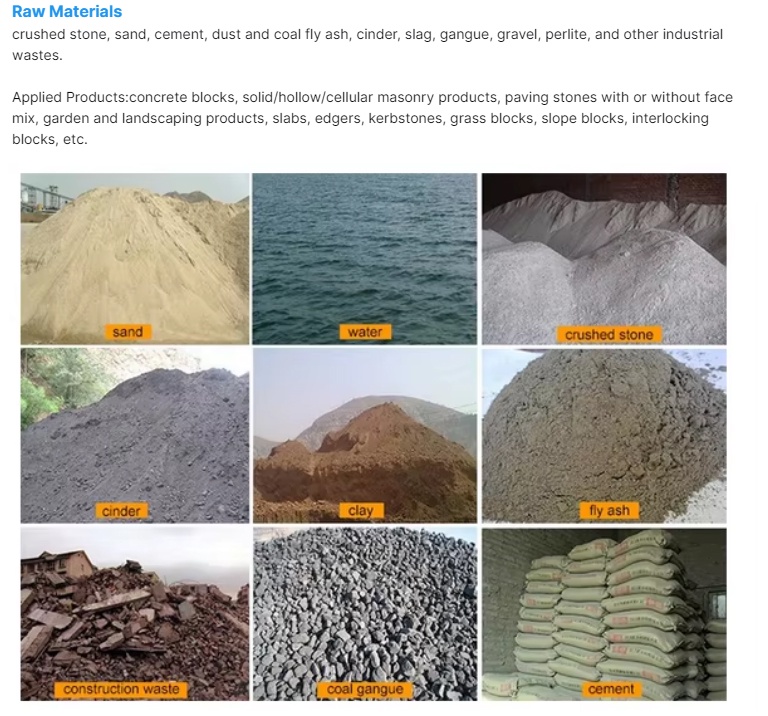

Wide Raw Material Compatibility

The machine can work with a variety of locally available materials, including:

• River Sand

• Manufactured Sand

• Gravel

• Crushed Stone

• Stone Powder

• Brick Waste

• Fly Ash

• Coal Ash

• Slag

• Pumice

• Lightweight Aggregates

• Perlite

• Shale

The actual mix design should be adjusted according to local material characteristics and product requirements.

Flexible Production Configuration

The QT4-35 series can be used as an independent block machine or integrated with a mixer and conveyor system for continuous material feeding and higher production efficiency.

3. Product Applications

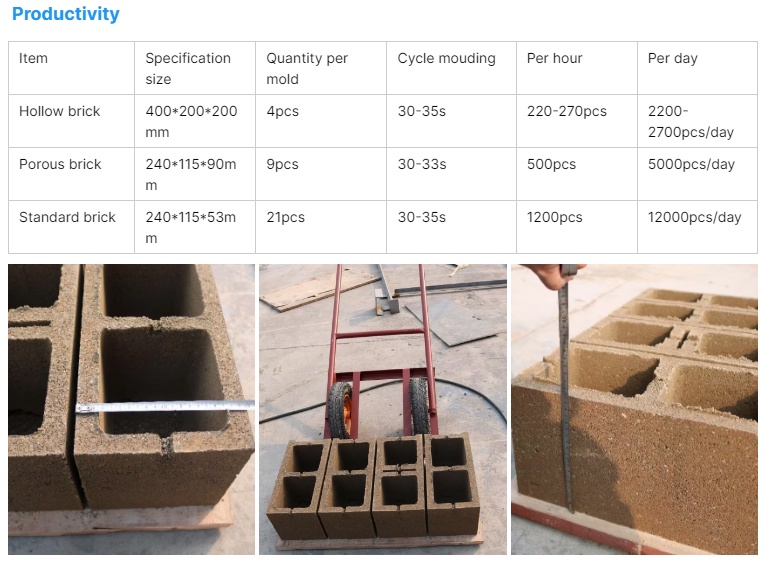

With different molds, the QT4-35 series can produce:

• Hollow Concrete Blocks

• Solid Concrete Blocks

• Masonry Blocks

• Concrete Bricks

• Paving Products

• Landscaping Blocks

• Other Customized Concrete Products

Its multi-product capability allows manufacturers to adapt production to different local market demands.

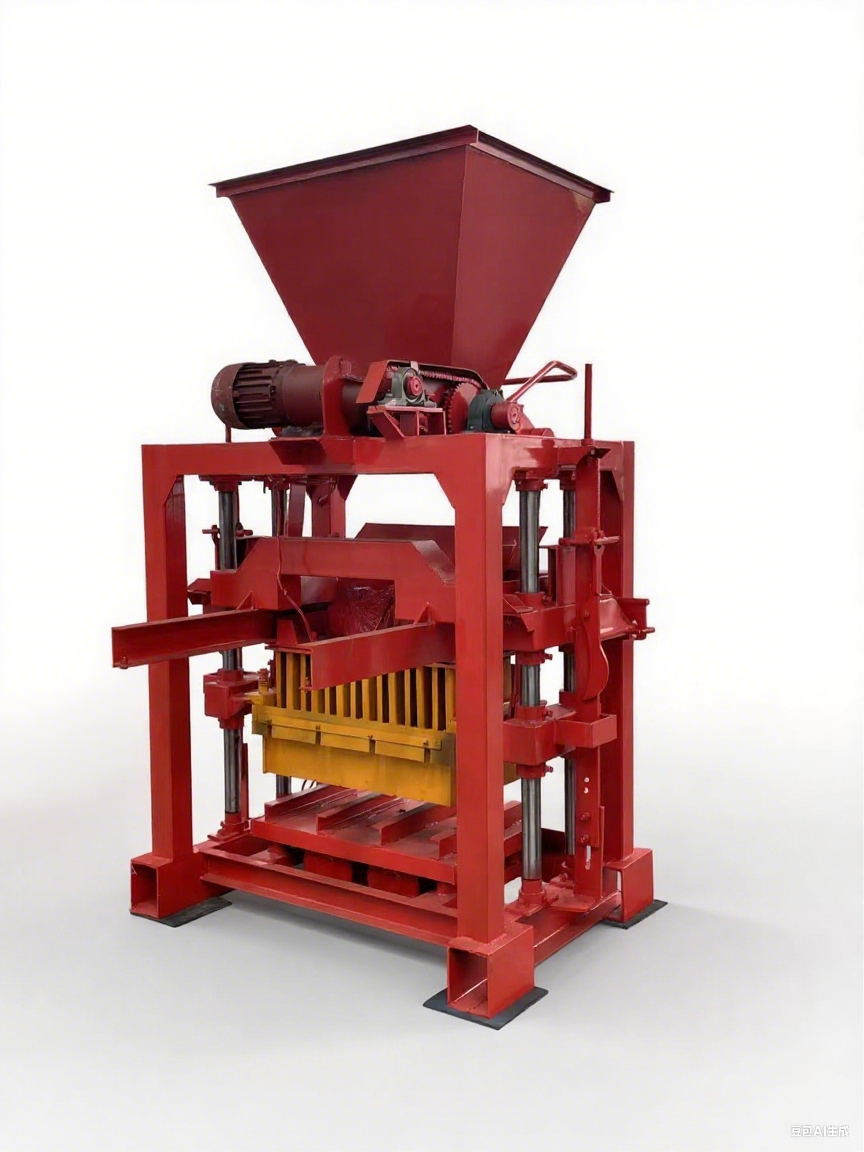

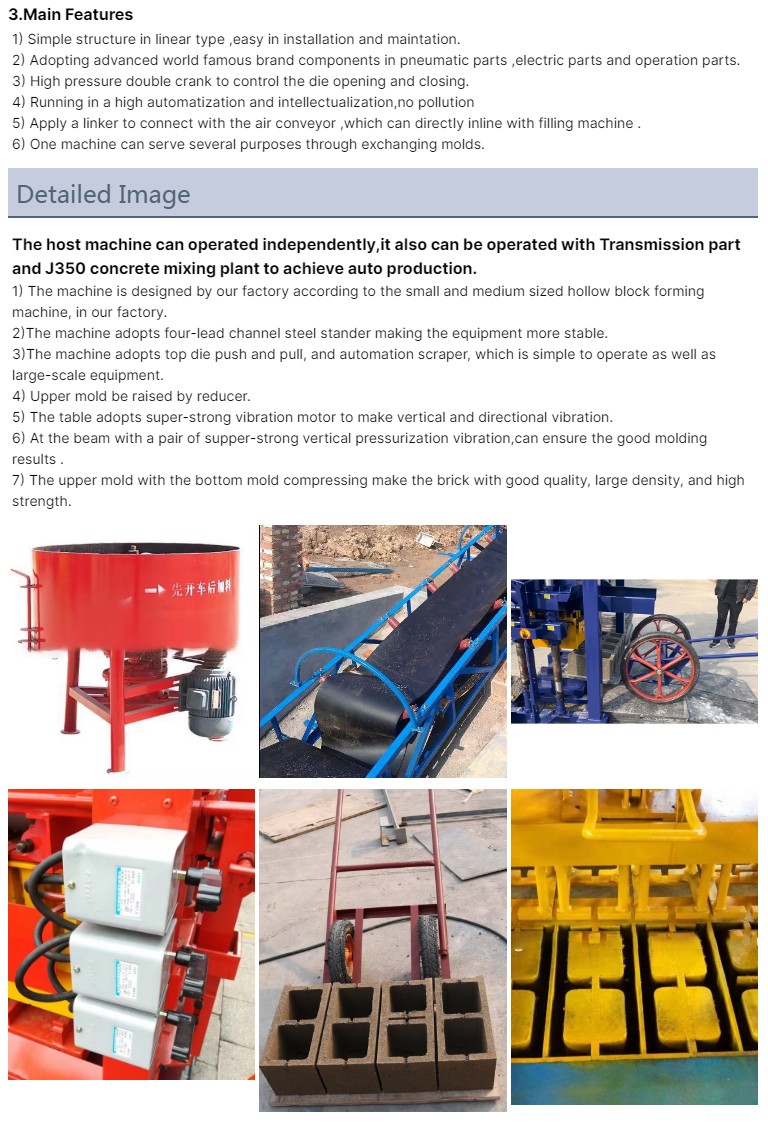

4. Main Components

The QT4-35 Small-Sized Block Machine Series mainly includes:

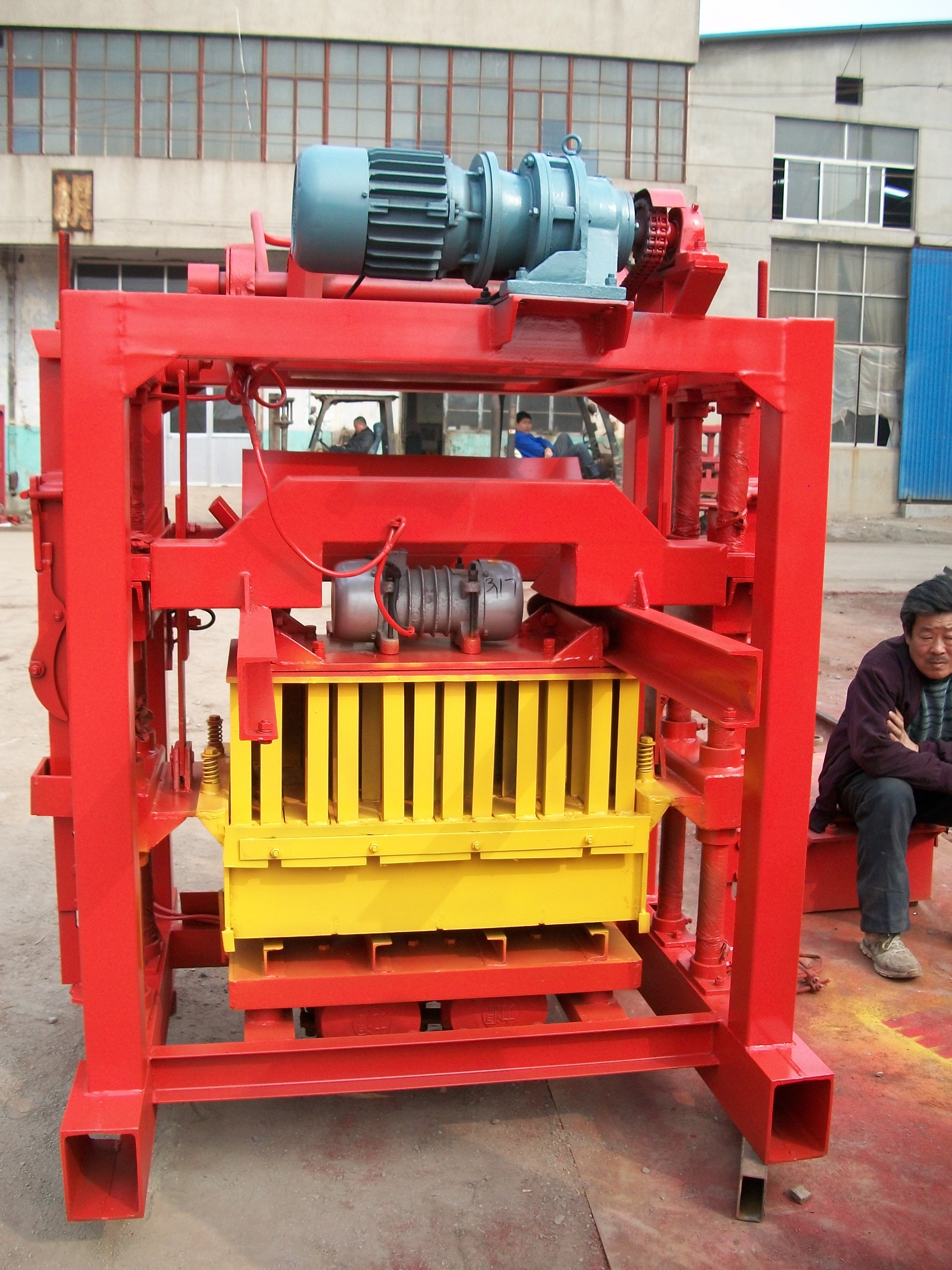

Vibration System

Provides upper and lower vibration to improve concrete compaction and forming quality.

Lifting & Demolding System

Controls mold lifting and demolding through the mechanical transmission and lifting mechanism.

Material Feeding System

Stores and delivers mixed concrete into the forming mold.

Mold & Forming System

Shapes the concrete mixture into the required product dimensions.

Electrical Control System

Provides basic control of the main machine functions and simplifies daily operation.

5. Production Process

Raw Material Batching → Concrete Mixing → Material Feeding → Material Distribution → Lower Vibration → Upper & Lower Vibration Forming → Demolding → Block Handling → Curing

The production cycle can be adjusted according to product size, concrete mix, moisture content, and operating conditions.

6. Applications

The QT4-35 series is suitable for:

• Small and Medium-Sized Block Factories

• Building Material Workshops

• Construction Contractors

• Rural Construction Projects

• Municipal Projects

• Landscaping Projects

• Paving and Masonry Production

• Local Precast Concrete Manufacturing

7. Advantages

Cost-Effective

The simple structure and relatively low equipment investment make the QT4-35 series suitable for customers with limited production budgets.

Easy to Operate

The practical control and mechanical design allow operators to become familiar with daily production procedures quickly.

Easy to Maintain

Regular lubrication, cleaning, tightening, and inspection can be carried out conveniently, helping reduce maintenance complexity.

Flexible Production

Mold replacement allows the same machine to manufacture different concrete products.

Suitable for Local Materials

The machine has good adaptability to different aggregate and industrial by-product materials, helping customers make use of locally available resources.

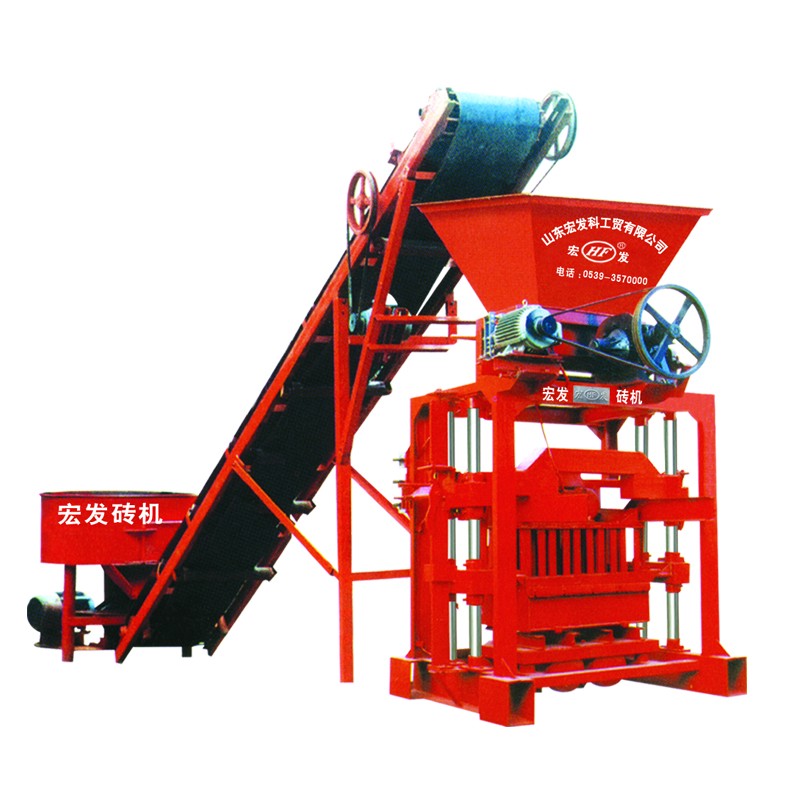

8. Supporting Equipment

For a more efficient production setup, the QT4-35 series can be combined with:

• Concrete Mixer

• Belt Conveyor

• Material Storage Hopper

• Batching Equipment

• Pallet System

• Block Handling Equipment

• Curing Equipment

• Customized Molds

The configuration can be selected according to production requirements, factory layout, and investment level.

9. Operation & Maintenance

To maintain stable performance, operators should regularly:

• Lubricate moving components

• Check and tighten bolts and connections

• Inspect motors and electrical components

• Check vibrator bearings and transmission parts

• Clean molds and machine surfaces after each shift

• Inspect the forming system before production

• Stop the machine immediately when abnormal conditions occur

10. Safety Requirements

For safe operation:

• Ensure the main power supply is properly grounded.

• Disconnect the power before maintenance, cleaning, or repair.

• Keep operators away from moving components during operation.

• Use appropriate hearing protection in high-noise environments.

• Ensure mixer safety guards are properly installed.

• Never reach into a running mixer or machine.

11. Why Choose the QT4-35 Series?

• Compact and practical design

• Strong upper and lower vibration

• Simple mechanical structure

• Easy operation and maintenance

• Wide raw material compatibility

• Flexible mold options

• Suitable for multiple concrete products

• Standalone or production-line configuration

• Cost-effective investment

• Ideal for small and medium-scale production

12. Conclusion

The QT4-35 Small-Sized Block Machine Series provides a practical solution for customers seeking reliable and economical equipment for small- and medium-scale concrete product manufacturing.

With its simple structure, strong vibration forming, wide material adaptability, flexible mold configuration, and convenient maintenance, the QT4-35 series can meet the production needs of hollow blocks, solid blocks, paving products, and other concrete products.

QT4-35 Small-Sized Block Machine Series

Compact Size · Reliable Performance · Flexible Production

A Practical and Cost-Effective Solution for Small and Medium-Scale Concrete Block Manufacturing.
