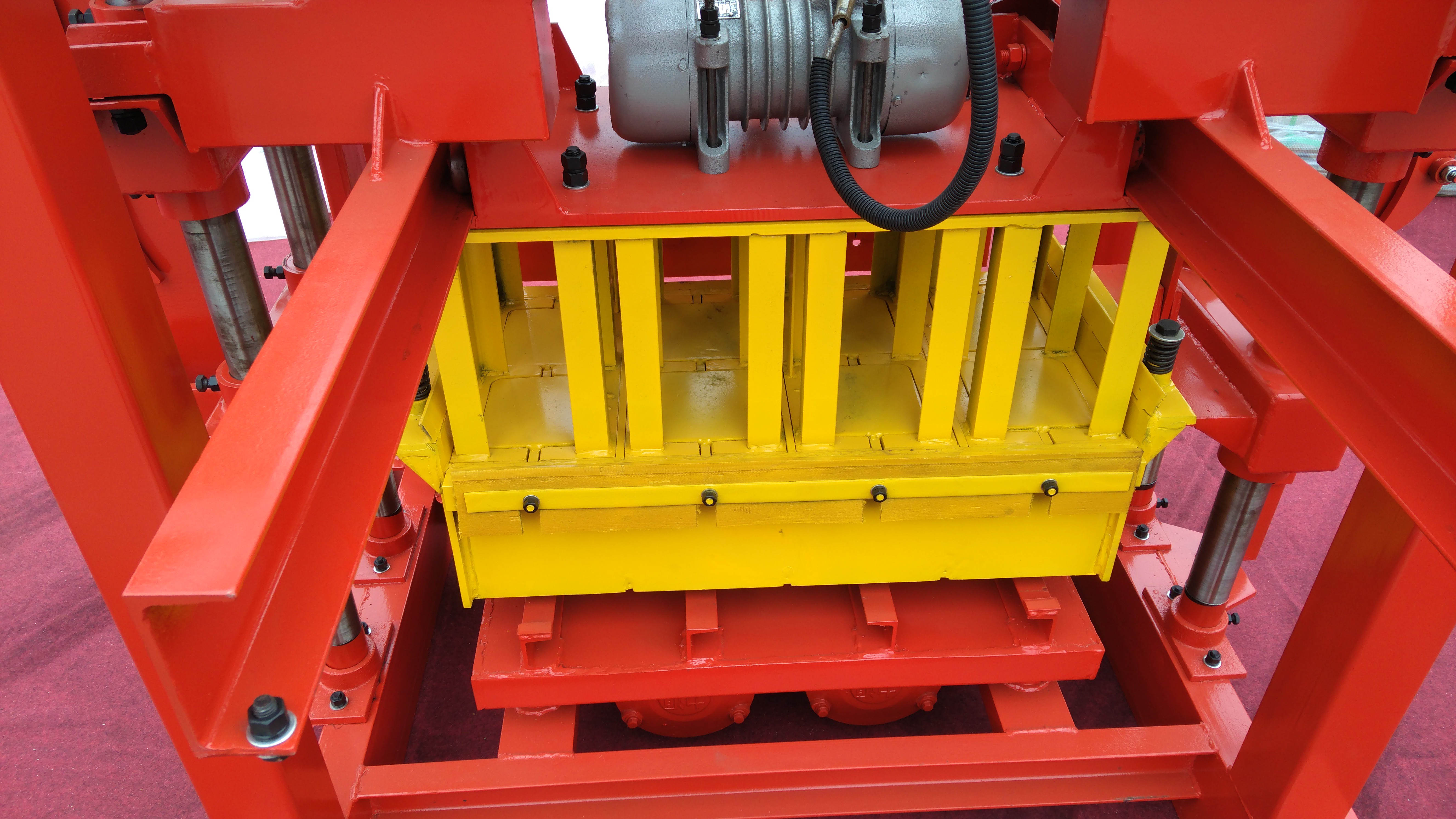

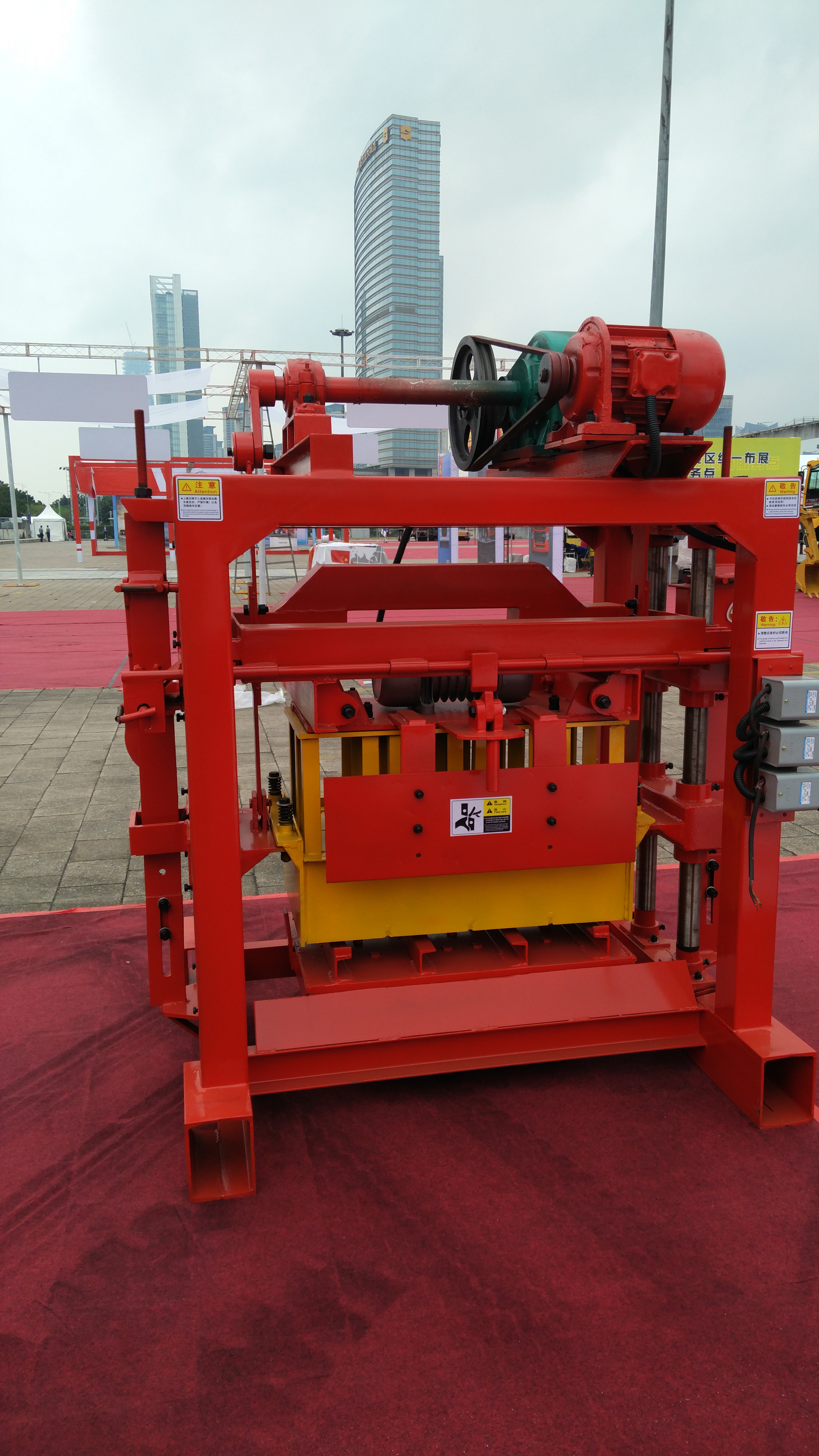

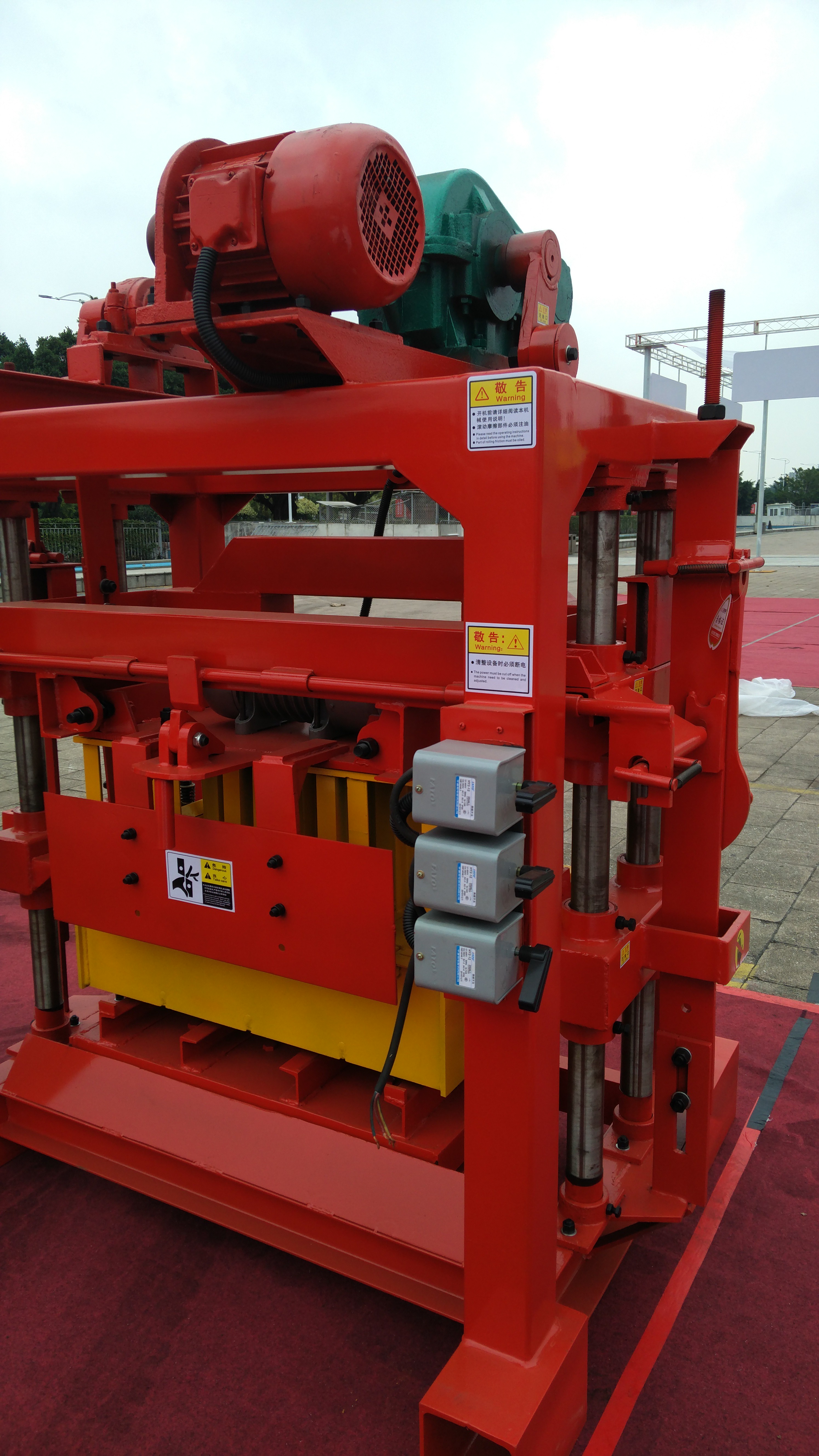

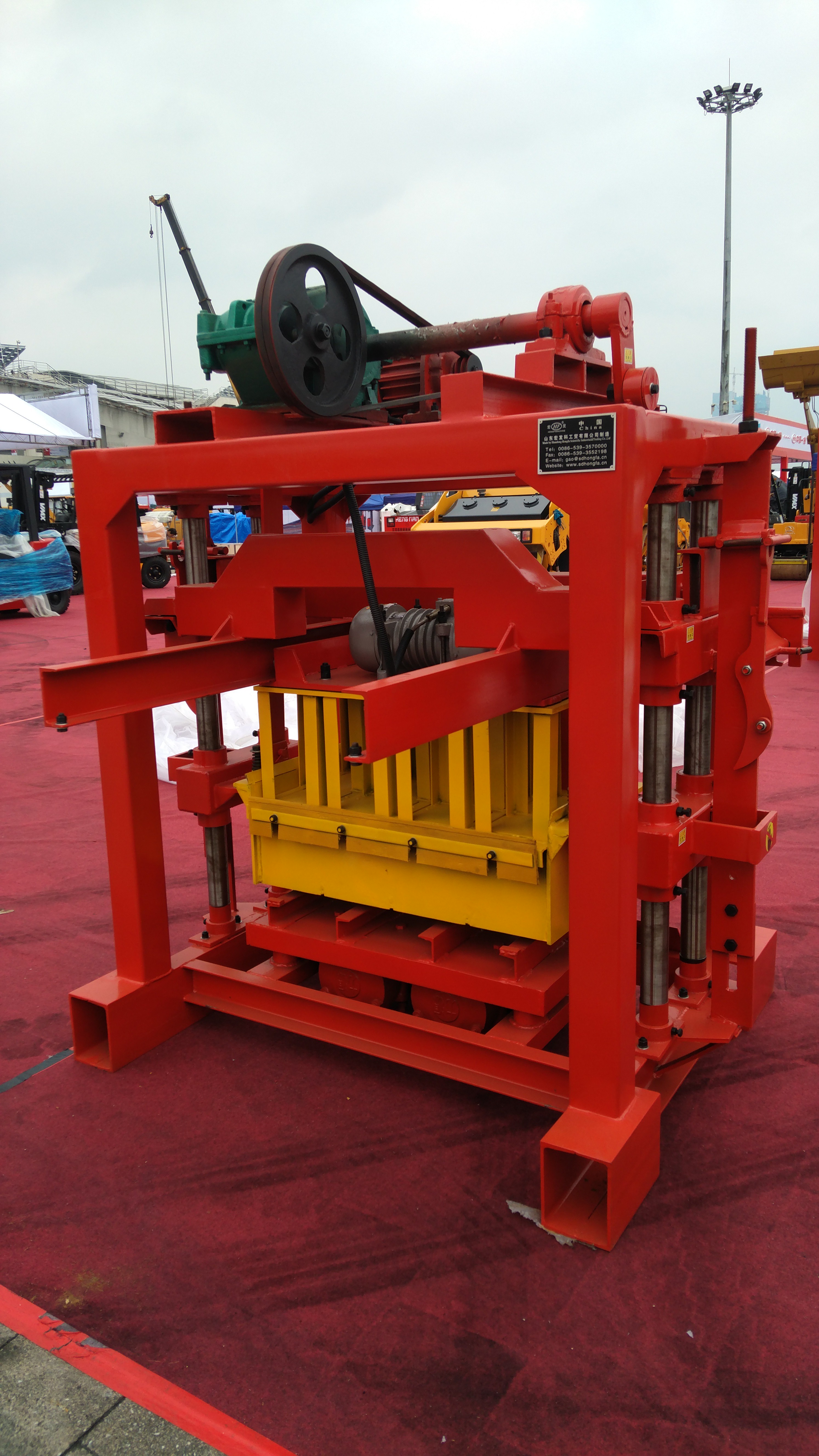

QT4-40 Small-Sized Block Machine

Compact Design · Stable Performance · Easy Operation · Low Operating Cost

1. Product Overview

The QT4-40 Small-Sized Block Machine is a compact and reliable concrete block making machine designed for small- and medium-scale production.

With a simple mechanical structure, straightforward operation, convenient maintenance, and stable forming performance, the QT4-40 provides a practical and economical solution for customers who need reliable concrete product manufacturing without investing in a large-scale automated production line.

By changing molds, the machine can produce different types and sizes of concrete blocks and paving products.

2. Key Features

Compact and Practical Design

The QT4-40 features a space-efficient structure, making it suitable for small factories, workshops, construction sites, and production facilities with limited available space.

Simple Operation

The machine adopts a straightforward operating system that is easy to understand and manage. Operators can quickly become familiar with routine production procedures.

Stable Performance

The robust mechanical design and stable vibration-forming process help ensure consistent product shape and reliable production performance.

Easy Maintenance

The machine is designed for convenient cleaning, lubrication, inspection, and replacement of common wear components, helping simplify routine maintenance.

Low Operating Cost

Its simple structure and relatively low power and maintenance requirements help reduce daily operating expenses, making it suitable for cost-conscious manufacturers.

3. Products

The QT4-40 can be equipped with different molds to produce:

• Hollow Concrete Blocks
• Solid Concrete Blocks
• Paving Blocks
• Interlocking Pavers
• Garden Blocks
• Landscaping Products
• Masonry Products
• Other Customized Concrete Products

4. Production Process

The typical production process includes:

Raw Material Batching → Concrete Mixing → Material Feeding → Material Distribution → Vibration & Pressing → Demolding → Product Handling → Curing

Production parameters can be adjusted according to the product type, concrete mix, moisture content, and operating conditions.

5. Applications

The QT4-40 is suitable for:

• Small and Medium-Sized Block Factories
• Building Material Workshops
• Construction Companies
• Small-Scale Construction Projects
• Rural Construction
• Municipal Projects
• Landscaping and Garden Projects
• Paving Product Manufacturing

6. Product Advantages

Cost-Effective Solution

The QT4-40 offers a practical balance between equipment investment, production capability, and operating cost, making it suitable for businesses with moderate production requirements.

Easy to Operate

Its straightforward design reduces operator training requirements and simplifies daily production management.

Flexible Production

Different molds can be installed to manufacture multiple concrete products using the same machine.

Easy Maintenance

The practical machine structure makes regular inspection, cleaning, lubrication, and maintenance easier.

Space Saving

The compact design helps reduce the required installation area and allows flexible factory layout.

7. Optional Supporting Equipment

The QT4-40 can be combined with auxiliary equipment to improve production efficiency, including:

• Concrete Mixer
• Material Batching Equipment
• Belt Conveyor
• Material Hopper
• Pallet System
• Block Handling Equipment
• Curing Equipment
• Customized Molds

The equipment configuration can be selected according to product type, production requirements, factory layout, and budget.

8. Recommended Raw Materials

Depending on the product specification and mix design, the machine can use common concrete raw materials such as:

• Cement
• Sand
• Gravel
• Crushed Stone
• Stone Powder
• Fly Ash
• Slag
• Other Suitable Aggregates

The final mix proportion should be determined according to local material characteristics and product performance requirements.

9. Operation & Maintenance

For stable long-term operation, operators should:

• Check the machine before each production shift
• Lubricate moving components regularly
• Inspect and tighten bolts and connections
• Check motors, electrical components, and transmission parts
• Clean molds and machine surfaces after production
• Inspect vibration and forming components regularly
• Stop the machine immediately when abnormal conditions occur

10. Safety Requirements

For safe operation:

• Properly ground the main power supply.
• Disconnect the power before maintenance or cleaning.
• Keep personnel away from moving machine components during operation.
• Use appropriate hearing protection in high-noise environments.
• Ensure all safety guards are properly installed.
• Never reach into a running mixer or machine.

11. Why Choose QT4-40?

• Compact and practical design
• Simple operation
• Stable forming performance
• Easy maintenance
• Low operating cost
• Flexible mold configuration
• Multiple product applications
• Small footprint
• Suitable for small and medium-sized manufacturers
• Cost-effective production solution

12. Conclusion

The QT4-40 Small-Sized Block Machine is a practical solution for manufacturers and construction projects that require reliable concrete block production with controlled investment and operating costs.

Its compact structure, simple operation, stable performance, easy maintenance, and flexible mold options make it suitable for producing hollow blocks, solid blocks, paving blocks, interlocking pavers, and other concrete products.

QT4-40 Small-Sized Block Machine

Compact Size · Stable Performance · Easy Operation · Low Operating Cost

A Practical and Economical Solution for Small and Medium-Scale Concrete Block Manufacturing.
