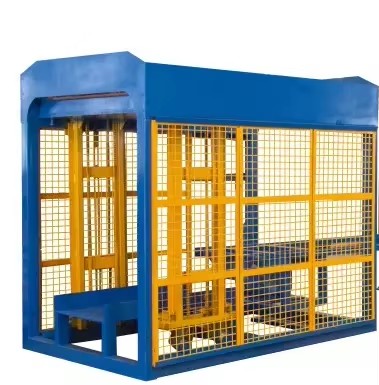

Automatic Block Stacker

Multi-Pallet Handling · Multi-Layer Stacking · Labor Saving · Space Efficient

1. Product Overview

The Automatic Block Stacker is an efficient material-handling solution designed for the automatic stacking of freshly produced concrete blocks and paving products.

The machine can handle 3–4 pallets of blocks at a time and stack products 4–5 layers high. By automating the transfer and stacking process, it helps save working time, reduce labor costs, and make better use of the available curing and storage area.

It is an ideal auxiliary system for automatic and semi-automatic concrete block production lines.

2. Key Features

Multi-Pallet Handling

The stacker can handle 3–4 pallets per cycle, significantly improving block transfer efficiency compared with manual handling.

4–5 Layer Stacking

The machine stacks blocks vertically in 4–5 layers, helping maximize the use of the available curing and storage space.

Labor Saving

Automatic handling reduces repetitive manual work, helping reduce labor requirements and operating costs.

Faster Handling

Multi-pallet operation shortens the time required to transfer freshly produced blocks from the production line to the curing area.

Space Saving

Vertical stacking reduces the footprint required for curing and temporary storage, allowing manufacturers to use their factory area more efficiently.

Stable Operation

The machine is designed for continuous and reliable handling, helping maintain a smooth workflow between block forming, transfer, and curing.

3. Working Process

Finished Block Production → Pallet Conveying → Multi-Pallet Handling → Lifting & Transfer → 4–5 Layer Stacking → Curing & Storage

The stacker can be integrated with the block forming machine, conveyor system, and curing area to create a more efficient production workflow.

4. Main Advantages

Save Working Time

Handling multiple pallets in one cycle reduces repetitive transfer operations and speeds up the overall production process.

Reduce Labor Costs

Automatic stacking minimizes manual transportation and stacking work, reducing the number of workers required for post-production handling.

Reduce Curing Area

Stacking 4–5 layers vertically makes better use of the curing space and can reduce the required land area.

Improve Production Efficiency

Fast and organized block handling helps prevent production bottlenecks and improves the efficiency of the entire production line.

Better Space Utilization

Systematic stacking keeps finished products organized and makes more efficient use of factory and curing areas.

5. Applications

The Automatic Block Stacker is suitable for:

• Concrete Block Production Lines

• Hollow Block Manufacturing Plants

• Solid Block Production

• Paving Block Factories

• Interlocking Paver Production

• Precast Concrete Plants

• Automated Building Material Production Lines

6. Suitable Products

The stacker can be configured for various palletized concrete products, including:

• Hollow Concrete Blocks

• Solid Concrete Blocks

• Paving Blocks

• Interlocking Pavers

• Kerbstones

• Other Concrete Products

The actual handling capacity and stacking arrangement should be matched to product dimensions, pallet size, product weight, and production-line layout.

7. Why Choose the Automatic Block Stacker?

• Handles 3–4 pallets per cycle

• Stacks 4–5 layers

• Saves working time

• Reduces labor costs

• Reduces curing space requirements

• Improves production efficiency

• Optimizes factory space

• Suitable for automated production lines

• Stable and efficient operation

8. Conclusion

The Automatic Block Stacker is a practical solution for improving the handling efficiency of modern concrete block production lines.

By processing 3–4 pallets at a time and stacking blocks 4–5 layers high, it helps manufacturers reduce manual labor, shorten handling time, lower labor costs, and reduce the land area required for curing and storage.

Automatic Block Stacker

Handle More · Stack Higher · Save Labor · Save Space

An Efficient Automatic Handling Solution for Modern Concrete Block Production.
