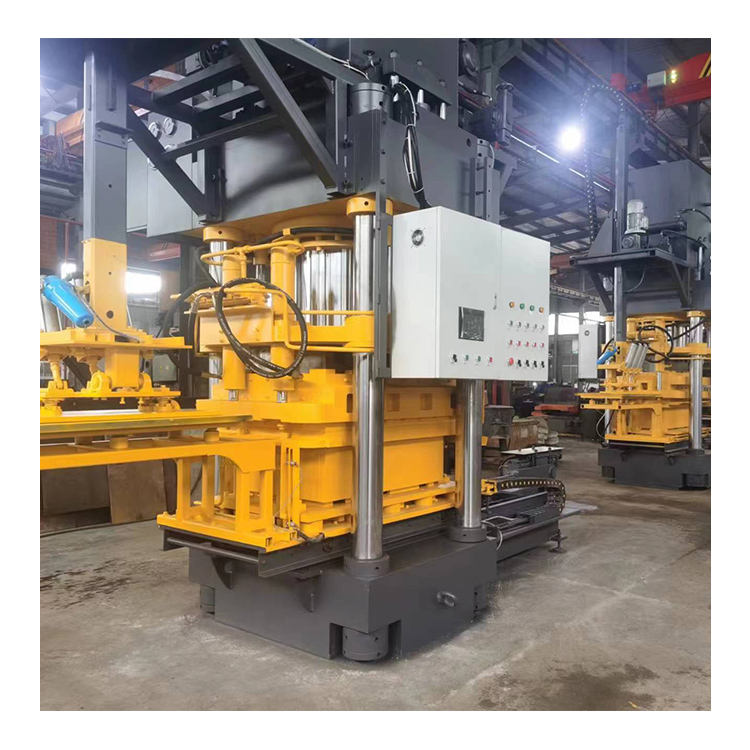

SM8-128 Terrazzo Tile Making Machine

High-Efficiency Hydraulic Terrazzo Tile Production

The SM8-128 Terrazzo Tile Making Machine is a high-performance hydraulic forming machine designed for the efficient production of terrazzo tiles and other concrete decorative tiles. It combines PLC automatic control, hydraulic forming technology, high forming pressure, and flexible mold configurations to deliver stable production performance and consistent tile quality.

With a forming capacity of approximately 4-7 pieces per minute and a hydraulic forming pressure of 128-180 tons, the SM8-128 is suitable for commercial terrazzo tile production and building material manufacturing. By changing the molds, the machine can produce different main tiles and matching tiles in various sizes, shapes, and patterns.

Key Features

Fast Forming and High Production Capacity

The SM8-128 uses an efficient hydraulic forming system to achieve a forming cycle of approximately 4-7 pieces per minute. Its stable production performance and practical operating efficiency make it suitable for continuous commercial tile manufacturing.

Automatic PLC Control

The machine adopts a PLC automatic control system based on Mitsubishi technology, enabling precise control of the forming process and improving production consistency. The combination of electrical, hydraulic, and pneumatic systems helps simplify operation and maintain stable working performance.

High-Pressure Hydraulic Forming

With a forming pressure of 128-180 tons, the machine applies strong and stable pressure to the raw material, helping produce terrazzo tiles with high density, good strength, accurate dimensions, and a consistent appearance.

Vibration-Free Forming

The machine uses a hydraulic, non-vibration forming method, which helps reduce mechanical vibration during production and provides a controlled forming process.

Wide Range of Tile Designs

The SM8-128 is designed as a multifunctional tile forming machine. By replacing the molds, it can produce different types of main tiles, matching tiles, decorative tiles, and customized products.

High Product Quality

Hydraulic pressure forming helps improve the compactness and structural integrity of the finished tiles. The resulting products can achieve high density, good dimensional accuracy, stable strength, and attractive surface quality, making them suitable for a wide range of architectural applications.

CNC Mold Manufacturing

The molds are manufactured using CNC machining technology, providing high dimensional accuracy and supporting the production of tiles with consistent shapes and patterns.

Production Process

The typical terrazzo tile production process includes:

Sand + Cement + Water → Mixer → Dosing System → Surface Material Application → Tile Forming Machine → Tile Shelves → Demolding → Tile Yard → Curing

1. Raw Material Preparation

Sand, cement, water, pigments, aggregates, and other required materials are prepared according to the tile formulation.

2. Mixing

The prepared materials are thoroughly mixed to achieve a uniform and consistent mixture.

3. Dosing

The mixed material is accurately fed into the production system according to the required quantity.

4. Surface Material Application

The surface material or decorative layer can be applied according to the required terrazzo tile design.

5. Hydraulic Forming

The material is placed into the mold and compressed by the hydraulic forming system under high pressure.

6. Tile Shelving and Demolding

After forming, the finished tiles are transferred to tile shelves for temporary storage and subsequent demolding.

7. Curing

The formed tiles are transferred to the curing area for controlled curing to achieve the required strength and stability.

Technical Specifications

Actual production capacity may vary according to tile size, material formulation, mold configuration, operator efficiency, and production conditions.

Recommended Production Line Equipment

A complete SM8-128 terrazzo tile production line can be equipped with the following machinery:

The equipment configuration can be adjusted according to the customer's production capacity, tile specifications, factory layout, and degree of automation.

Auxiliary Facilities Required by the Customer

To establish a complete production workshop, the following auxiliary facilities are recommended:

Advantages of the SM8-128

High Production Efficiency

With a forming rate of up to 4-7 pieces per minute, the machine supports efficient commercial tile production.

Strong Hydraulic Forming Pressure

The 128-180 ton forming force provides effective material compaction and helps improve tile density and strength.

Precise Automatic Control

The Mitsubishi-based PLC control system supports accurate and repeatable production operations.

Flexible Mold Replacement

Different molds can be installed to produce multiple tile sizes, patterns, and complementary tile products.

Stable Product Quality

Controlled hydraulic forming and CNC-produced molds help maintain consistent dimensions, shape, and surface quality.

Practical Labor Requirement

A typical production operation requires approximately 3-4 workers, depending on the degree of automation and plant configuration.

Reliable and Cost-Effective Operation

The machine combines efficient forming performance with a practical equipment configuration, making it suitable for manufacturers seeking a balance between investment, production capacity, and product quality.

Applications

The SM8-128 Terrazzo Tile Making Machine is suitable for producing:

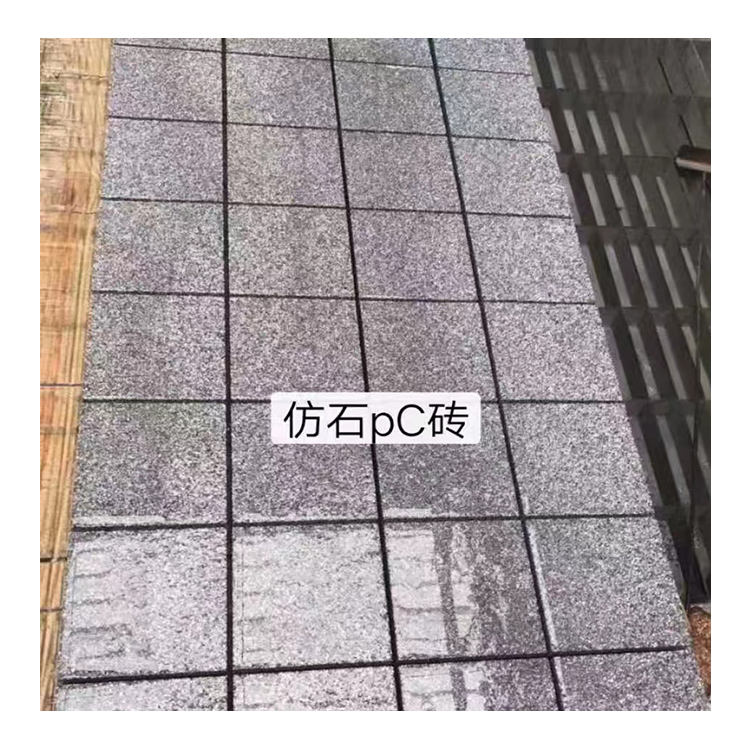

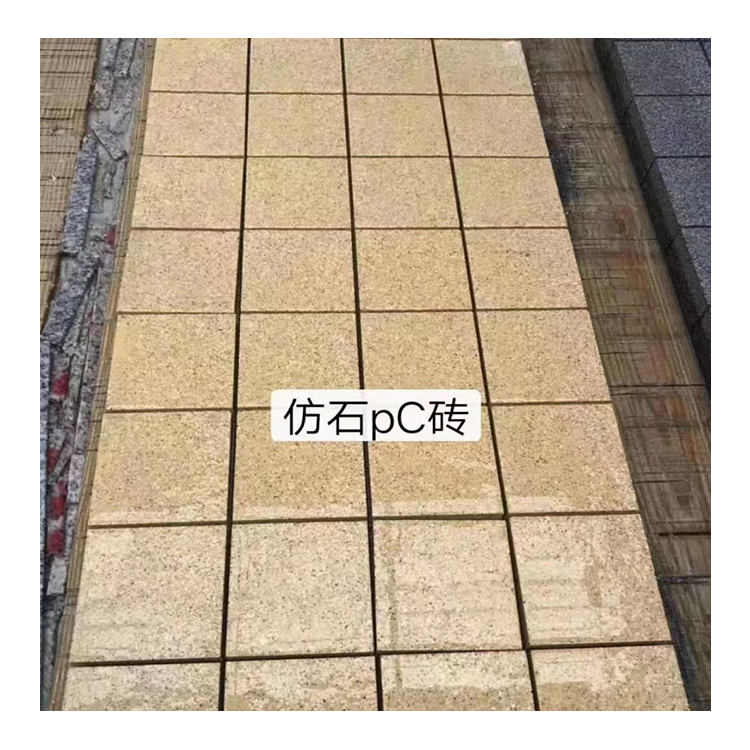

• Terrazzo floor tiles

• Cement tiles

• Decorative concrete tiles

• Indoor and outdoor paving tiles

• Architectural floor tiles

• Main tiles and matching tiles

• Customized terrazzo tile products

It is suitable for terrazzo tile factories, concrete product manufacturers, construction material plants, and decorative flooring producers.

Factory Layout and Production Conditions

A practical production workshop should provide sufficient space for raw material storage, mixing, feeding, tile forming, shelf placement, demolding, curing, finished product handling, and equipment maintenance.

For a standard setup, a workshop of approximately 15 × 10 meters and a tile yard of approximately 400 m² can be used as a reference. The final layout should be adjusted according to the actual equipment arrangement, production capacity, material storage requirements, and local working conditions.

Why Choose the SM8-128 Terrazzo Tile Making Machine?

The SM8-128 combines hydraulic high-pressure forming, PLC automatic control, CNC-manufactured molds, and a flexible production configuration in one practical solution. Its ability to produce multiple tile sizes and designs by changing molds makes it suitable for manufacturers who need both efficient production and product variety.

With reliable forming performance, high production efficiency, accurate dimensions, and flexible mold options, the SM8-128 provides an effective solution for modern terrazzo tile manufacturing.

Product Highlights

Hydraulic High-Pressure Forming
128-180 ton forming pressure for dense and strong tiles.

Fast Production
4-7 pieces per minute, depending on product configuration.

Automatic PLC Control
Mitsubishi-based PLC system for stable and precise operation.

Non-Vibration Forming
Controlled hydraulic forming process without conventional vibration.

Multiple Tile Sizes
Supports standard and customized tile dimensions.

CNC Molds
Accurately manufactured molds for consistent product quality.

Complete Production Solution
Compatible with mixers, feeders, elevators, molds, pallets, and auxiliary equipment.

Wide Application Range
Suitable for terrazzo tiles, cement tiles, decorative concrete products, and other building materials.
