600×600 Terrazzo Floor Tile Machine

High-Pressure Hydraulic Machine for 600×600 mm Terrazzo Floor Tiles

The 600×600 Terrazzo Floor Tile Machine is a professional hydraulic forming machine designed for the efficient production of terrazzo floor tiles, cement tiles, and other decorative concrete products. Based on the SM8-128 hydraulic forming system, the machine combines automatic PLC control, high forming pressure, stable operation, and flexible mold configurations to achieve efficient and consistent tile production.

With a forming pressure of 128-180 tons and a forming capacity of approximately 4-7 pieces per minute, the machine is suitable for commercial terrazzo tile manufacturing. By changing the molds, it can produce 600×600 mm tiles as well as other standard and customized sizes, providing manufacturers with greater product flexibility.

Key Features

Fast Forming and High Production Efficiency

The machine uses an efficient hydraulic forming system to provide a forming cycle of approximately 4-7 pieces per minute. Its stable performance makes it suitable for continuous production and commercial-scale terrazzo tile manufacturing.

Automatic PLC Control

The machine is equipped with a PLC automatic control system based on Mitsubishi technology. The integrated electrical, hydraulic, and pneumatic systems help improve operating accuracy, production consistency, and overall reliability.

High-Pressure Hydraulic Forming

With a forming pressure of 128-180 tons, the machine provides strong and stable compression during tile production. This helps improve tile density, strength, dimensional accuracy, and overall structural quality.

Non-Vibration Forming

The machine adopts a hydraulic non-vibration forming method, providing a controlled pressing process without conventional mechanical vibration.

Flexible Mold Design

The machine can produce different types of main tiles and matching tiles by replacing the molds. This allows manufacturers to produce different sizes, patterns, and decorative designs according to market requirements.

High Dimensional Accuracy

The forming system and CNC-manufactured molds help maintain consistent tile dimensions and shapes, reducing variations between finished products.

Durable and Reliable Construction

The machine is designed with a robust structure and reliable hydraulic and electrical components to support long-term operation in demanding production environments.

Working Process

The typical production process for the 600×600 Terrazzo Floor Tile Machine is:

Sand + Cement + Water → Mixer → Dosing System → Surface Material Application → Tile Forming Machine → Tile Shelves → Demolding → Tile Yard → Curing

1. Raw Material Preparation

Sand, cement, water, pigments, aggregates, and other materials are prepared according to the selected terrazzo tile formulation.

2. Mixing

The raw materials are thoroughly mixed to obtain a uniform and consistent mixture.

3. Dosing

The prepared mixture is accurately supplied to the forming system according to the required quantity.

4. Surface Material Application

A decorative surface layer or aggregate mixture can be applied according to the desired terrazzo tile design.

5. Hydraulic Forming

The material is placed into the mold and compressed under high hydraulic pressure to form the required tile shape and thickness.

6. Shelving and Demolding

Freshly formed tiles are transferred onto tile shelves for temporary storage and subsequent demolding.

7. Curing

The formed tiles are moved to the curing area, where they undergo controlled curing to achieve the required strength and stability.

Technical Specifications

Actual production capacity may vary depending on tile size, material formulation, mold configuration, production cycle, and operating conditions.

600×600 mm Terrazzo Floor Tile Production

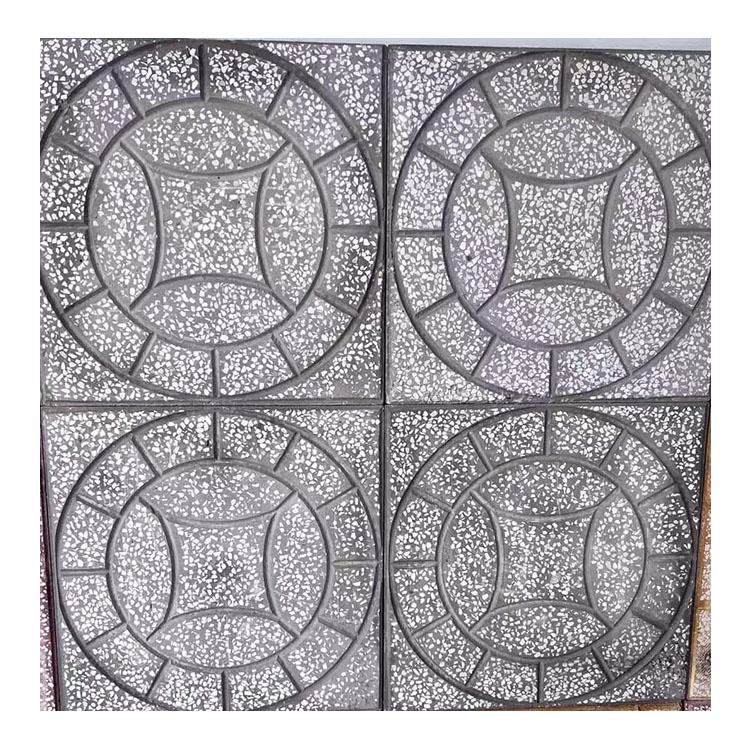

The machine is particularly suitable for producing 600×600 mm terrazzo floor tiles, a practical format for residential, commercial, and architectural flooring applications.

The hydraulic forming process applies uniform pressure across the mold, helping achieve:

• Consistent 600×600 mm dimensions

• Stable tile thickness

• High material density

• Good mechanical strength

• Smooth and uniform surface quality

• Consistent production between batches

Different surface aggregates, colors, pigments, and decorative patterns can be used to create a wide range of terrazzo floor tile designs.

Complete Terrazzo Tile Production Line

For a complete production system, the machine can be combined with the following equipment:

This configuration can be adjusted according to the required production capacity, tile specifications, workshop layout, and automation level.

Auxiliary Facilities Required

The customer should prepare the following auxiliary facilities for production:

Advantages of the 600×600 Terrazzo Floor Tile Machine

High Production Capacity

A forming rate of up to 4-7 pieces per minute supports efficient production for commercial tile manufacturers.

Strong Hydraulic Pressure

The 128-180 ton hydraulic forming force promotes high-density and strong finished tiles.

Stable Automatic Operation

The Mitsubishi-based PLC control system helps simplify operation and maintain stable production performance.

Flexible Product Range

Different molds can be installed to produce 600×600 mm tiles and other tile sizes and designs.

Accurate Tile Dimensions

CNC-manufactured molds help maintain dimensional consistency and stable product quality.

Non-Vibration Technology

Hydraulic pressing without conventional vibration provides a controlled and stable forming process.

Practical Labor Requirement

A typical production setup requires approximately 3-4 operators, depending on equipment configuration and production procedures.

Suitable for Various Decorative Designs

Different aggregates, colors, pigments, and surface materials can be used to manufacture a broad range of terrazzo flooring products.

Applications

The 600×600 Terrazzo Floor Tile Machine is suitable for producing:

• 600×600 mm terrazzo floor tiles

• Cement floor tiles

• Decorative concrete tiles

• Terrazzo paving tiles

• Architectural flooring products

• Indoor and outdoor decorative tiles

• Matching and complementary tiles

• Customized terrazzo tile products

It is widely applicable to terrazzo tile factories, concrete product manufacturers, construction material plants, flooring manufacturers, and decorative building material producers.

Workshop and Production Requirements

For a typical production setup, a workshop of approximately 15 × 10 meters can be used to accommodate the mixing equipment, forming machine, tile shelves, material handling area, and auxiliary equipment.

A tile yard of approximately 400 m² is recommended for demolding, curing, handling, and temporary storage of finished products.

The actual factory layout should be designed according to the production capacity, equipment configuration, material storage requirements, local working conditions, and customer's available space.

Why Choose the 600×600 Terrazzo Floor Tile Machine?

The 600×600 Terrazzo Floor Tile Machine combines high-pressure hydraulic forming, automatic PLC control, CNC-manufactured molds, flexible production capabilities, and stable operating performance in one practical system.

It is an ideal solution for manufacturers focusing on 600×600 mm terrazzo floor tiles while still requiring the flexibility to produce other tile sizes and designs. With efficient production, reliable forming quality, and convenient mold replacement, the machine supports modern terrazzo tile manufacturing with a practical balance between production capacity, product quality, and operating cost.

Product Highlights

600×600 mm Main Tile Production
Specially suitable for producing large-format terrazzo floor tiles.

128-180 Ton Hydraulic Pressure
Strong forming force for dense and durable products.

4-7 Pieces per Minute
Efficient forming speed for commercial production.

Mitsubishi PLC Control
Automatic control for stable and repeatable operation.

Non-Vibration Hydraulic Forming
Controlled forming process with reduced mechanical vibration.

CNC-Manufactured Molds
High mold accuracy for consistent tile dimensions.

Multiple Product Options
Supports different sizes, patterns, and matching tile products.

Complete Production Line Solution
Can be integrated with mixers, feeders, bucket elevators, molds, pallets, shelves, and auxiliary equipment.
