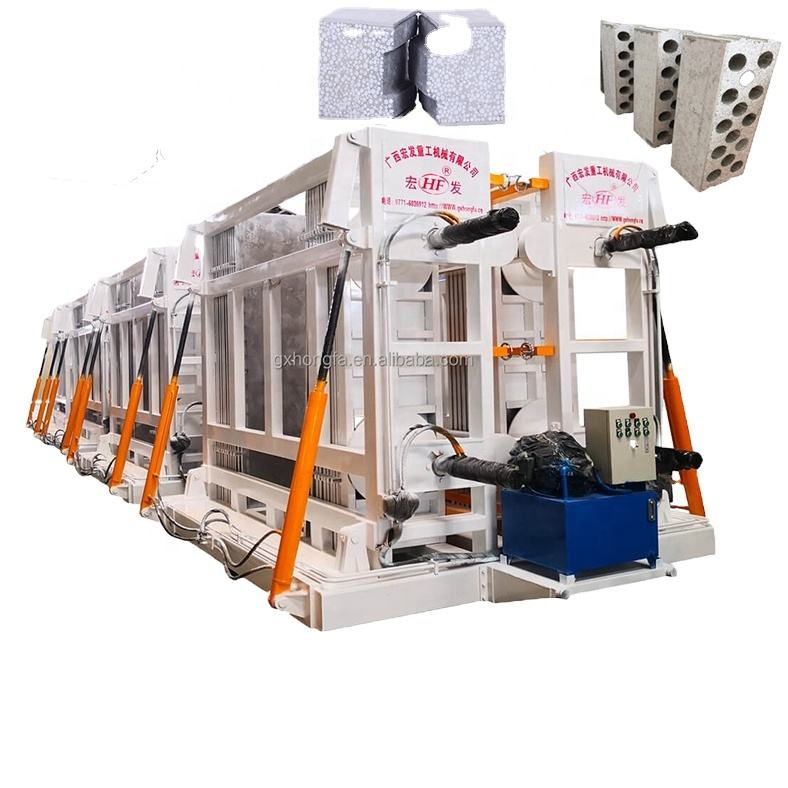

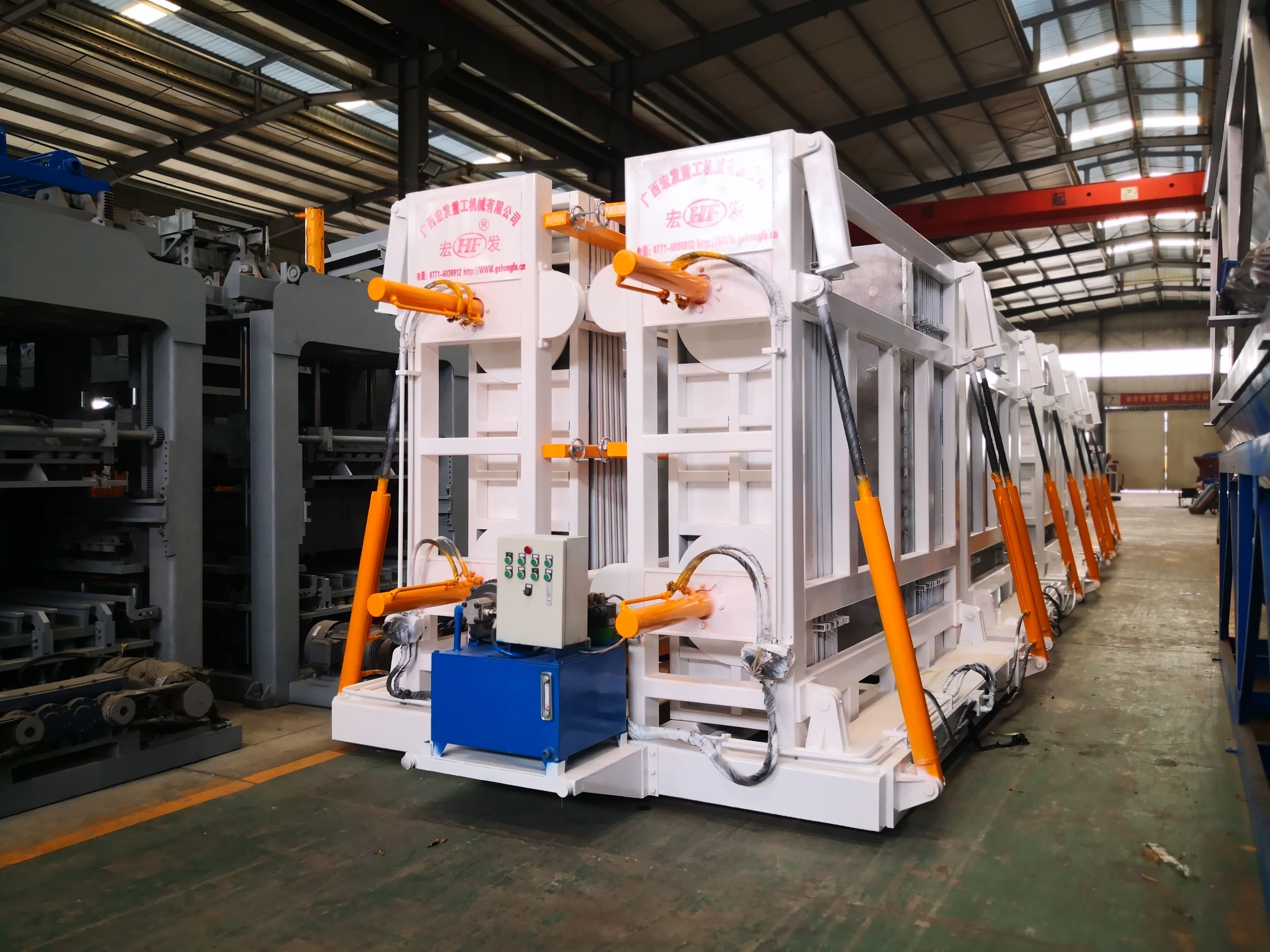

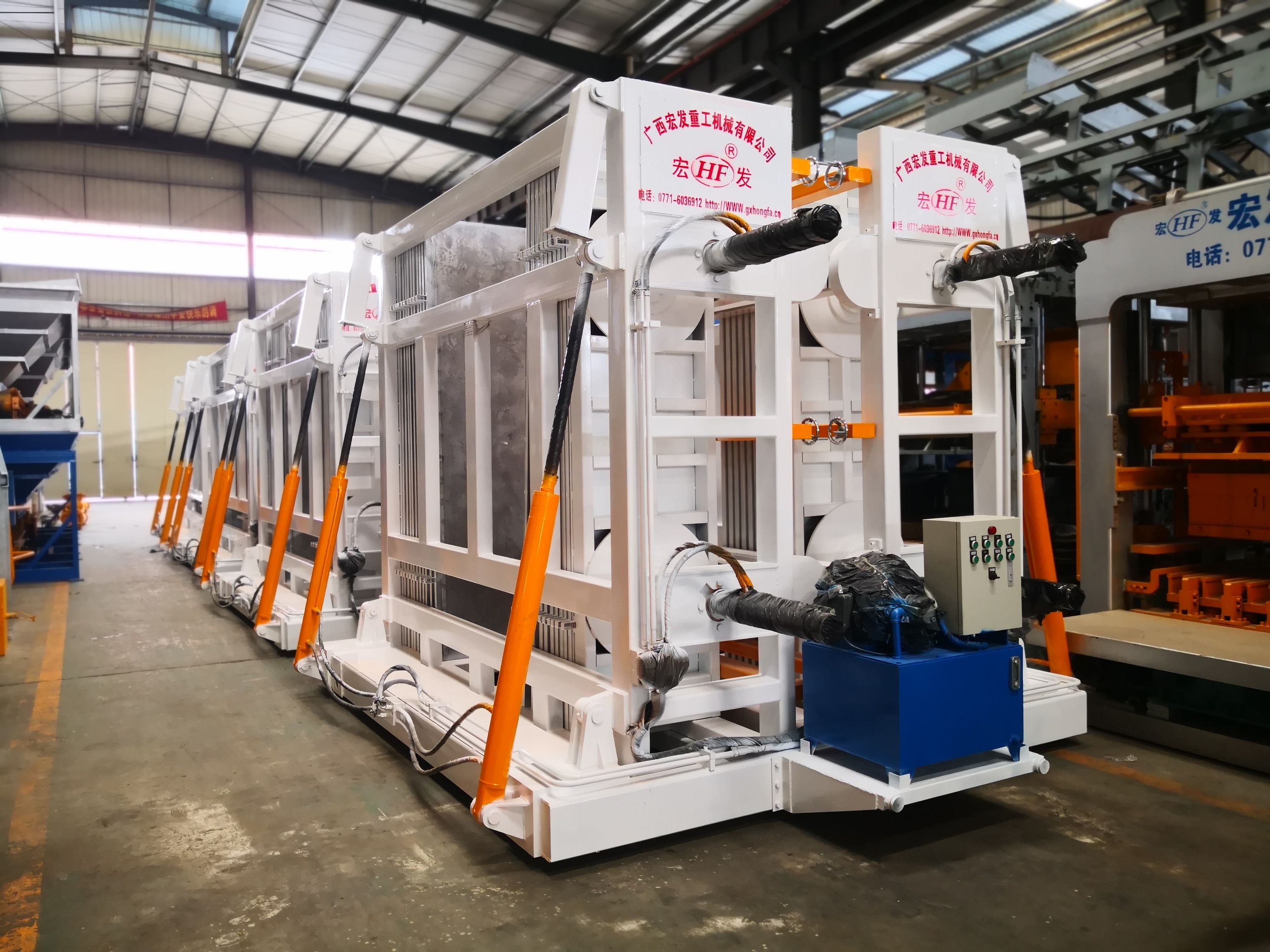

EPS Lightweight Wall Panel Production Line

Automated Production · Lightweight Construction · Excellent Thermal Insulation · Consistent Quality

1. Product Overview

The EPS Lightweight Wall Panel Production Line is an efficient automated system designed for the production of high-quality EPS lightweight concrete wall panels.

The production line integrates automatic batching, mixing, material feeding, molding, forming, and finished-panel handling to achieve stable production, consistent product quality, and convenient operation.

EPS lightweight wall panels combine a lightweight structure with good thermal insulation and construction efficiency, making them suitable for modern building projects, partition systems, exterior walls, and renovation applications.

2. Key Features

Automated Production

The production line integrates automated material batching, mixing, feeding, molding, and forming processes to reduce manual intervention and improve production efficiency.

Accurate Material Batching

The batching system precisely controls cement, aggregates, EPS particles, water, and other materials according to the preset formulation, helping maintain stable panel quality.

Uniform Mixing

The high-efficiency mixing system ensures that EPS particles and cementitious materials are evenly distributed throughout the mixture, contributing to consistent density and product performance.

Efficient Panel Forming

The molding and forming system is designed to produce lightweight wall panels with stable dimensions and uniform structure, helping improve installation efficiency.

Lightweight Construction

EPS particles create a lightweight cellular structure that reduces the overall weight of wall panels compared with conventional concrete wall materials.

Good Thermal Insulation

The EPS-based structure provides good thermal insulation performance, making the panels suitable for energy-efficient building applications.

Easy Operation

The centralized control system simplifies production management and allows operators to monitor and adjust key production parameters efficiently.

3. Main Production Process

The typical production process includes:

Raw Material Preparation → Automatic Batching → Mixing → EPS Material Addition → Material Feeding → Molding → Panel Forming → Demolding → Curing → Finished Product Handling

The exact process can be configured according to panel specifications, production capacity, and product formulation.

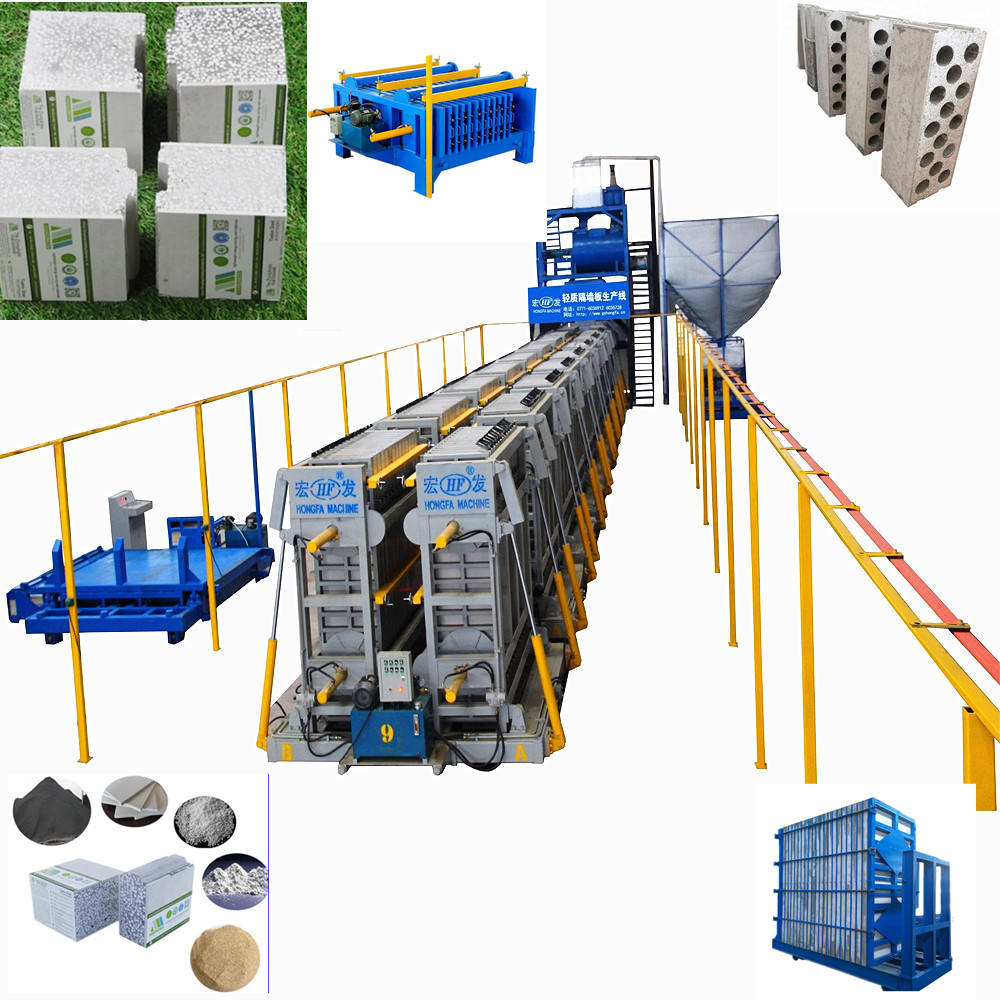

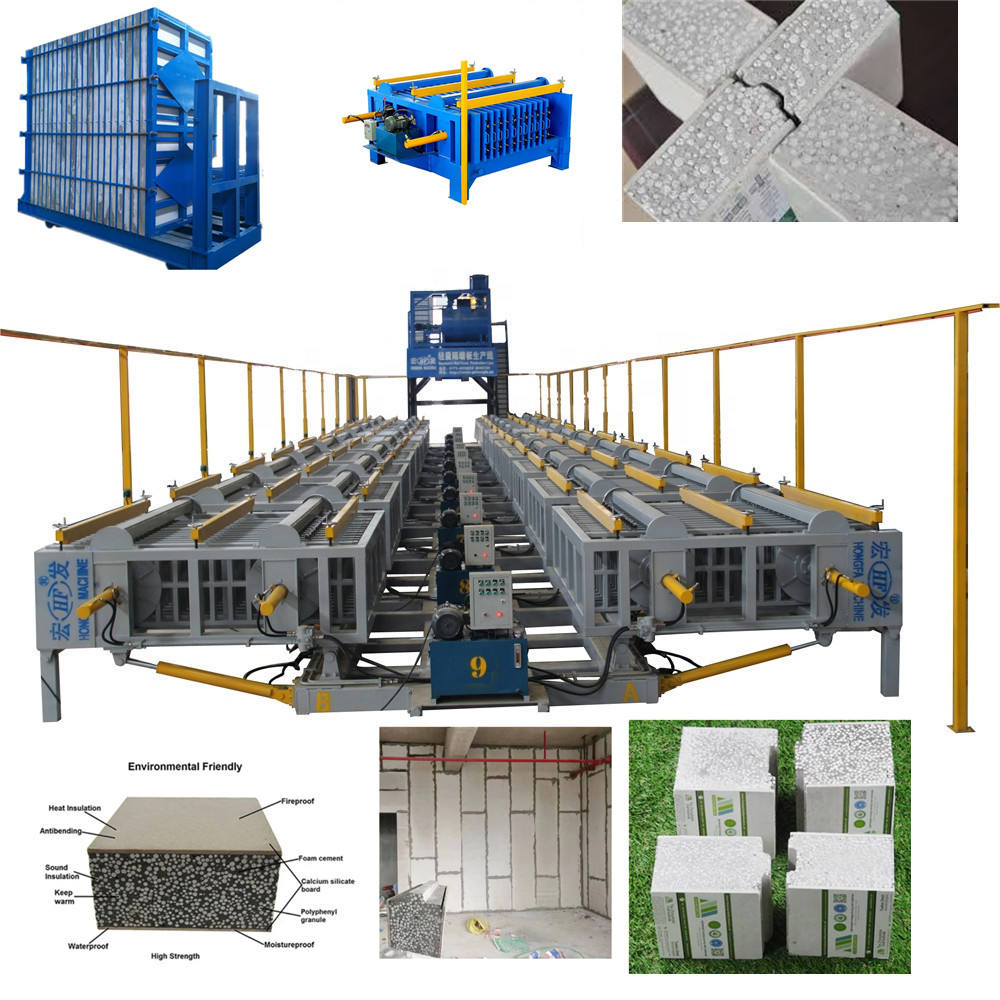

4. Main Equipment

A complete EPS lightweight wall panel production line generally includes:

Raw Material Batching System

Provides accurate measurement and automatic feeding of cement, sand, EPS particles, and other materials.

Mixing System

Thoroughly mixes the raw materials to produce a uniform lightweight concrete mixture.

EPS Feeding System

Precisely adds EPS particles into the mixture according to the production formula.

Molding & Forming System

Forms the mixed material into wall panels of the required dimensions and thickness.

Demolding System

Separates the formed panels from the molds while helping maintain product integrity.

Curing System

Provides suitable curing conditions to allow the wall panels to develop the required strength and stability.

Control System

A centralized electrical control system coordinates the main production processes and simplifies operation.

5. Product Advantages

Lightweight

EPS lightweight wall panels have a lower density than conventional concrete walls, which can help reduce building dead load and simplify transportation and installation.

Thermal Insulation

The EPS structure provides effective thermal insulation, making the panels suitable for energy-efficient building envelopes and interior applications.

Efficient Installation

Large-format wall panels can cover a relatively large wall area, helping reduce installation time and improve construction efficiency.

Good Dimensional Consistency

Automated molding and forming help produce panels with consistent dimensions, reducing adjustment work during installation.

Space Saving

Their lightweight and relatively thin construction makes EPS wall panels suitable for projects where efficient use of building space is important.

Suitable for Renovation

The lightweight characteristics make the panels suitable for building renovation, partition replacement, and other projects where reducing structural load is important.

6. Applications

EPS lightweight wall panels can be used for:

• Interior Partition Walls
• Exterior Wall Systems
• Non-Load-Bearing Walls
• Commercial Buildings
• Residential Buildings
• Office Buildings
• Industrial Buildings
• Hotels and Public Buildings
• Building Renovation
• Prefabricated Construction

The specific application should be determined according to the panel specification, structural design, and applicable building standards.

7. Intelligent Control System

The production line can be equipped with an automated control system for efficient production management.

Typical functions include:

• Automatic batching
• Mixing control
• Material feeding control
• Production parameter setting
• Equipment status monitoring
• Manual and automatic operation modes
• Fault alarms
• Production process control

This helps simplify operation, reduce manual errors, and improve production consistency.

8. Flexible Production Configuration

The EPS Lightweight Wall Panel Production Line can be customized according to different project requirements, including:

• Production capacity
• Panel thickness and dimensions
• Material formulation
• Automation level
• Factory layout
• Mold configuration
• Auxiliary equipment

This allows manufacturers to select a suitable production solution based on local market demand, available raw materials, and investment requirements.

9. Applications in Modern Construction

EPS lightweight wall panels are particularly suitable for modern construction systems that emphasize:

• Lightweight building materials
• Improved thermal efficiency
• Faster installation
• Prefabricated construction
• Building renovation
• Reduced structural load
• Efficient space utilization

10. Why Choose Our EPS Wall Panel Production Line?

• Automated batching and production
• Accurate material control
• Uniform mixing
• Efficient panel forming
• Consistent product quality
• Lightweight wall panel production
• Good thermal insulation
• Easy operation
• Flexible production configuration
• Suitable for new construction and renovation projects

11. Conclusion

The EPS Lightweight Wall Panel Production Line combines automated batching, efficient mixing, precision feeding, and reliable molding technology to provide an efficient solution for modern lightweight wall panel manufacturing.

The resulting EPS lightweight concrete panels offer advantages such as reduced weight, good thermal insulation, convenient installation, and flexible application, making them suitable for partition walls, exterior wall systems, prefabricated buildings, and renovation projects.

EPS Lightweight Wall Panel Production Line

Lightweight Materials · Automated Production · Thermal Insulation · Efficient Construction

A Practical Production Solution for Modern Lightweight Wall Panel Manufacturing.
