Fully Automatic EPS Wall Panel Production Line
The Fully Automatic EPS Wall Panel Production Line is designed to produce EPS cement sandwich panels and lightweight wall panels efficiently.
It features a fully automatic horizontal wall panel machine, offering easy operation, stable performance, high production efficiency, and low labor costs.
Applications: Prefabricated buildings, partition walls, exterior walls, and industrial buildings.
All PRODUCTS
Stay Connected
If you have any questions, please contact us and we will contact you as soon as possible.
Prduct Introdution
Lightweight EPS Wall Panel Production Line

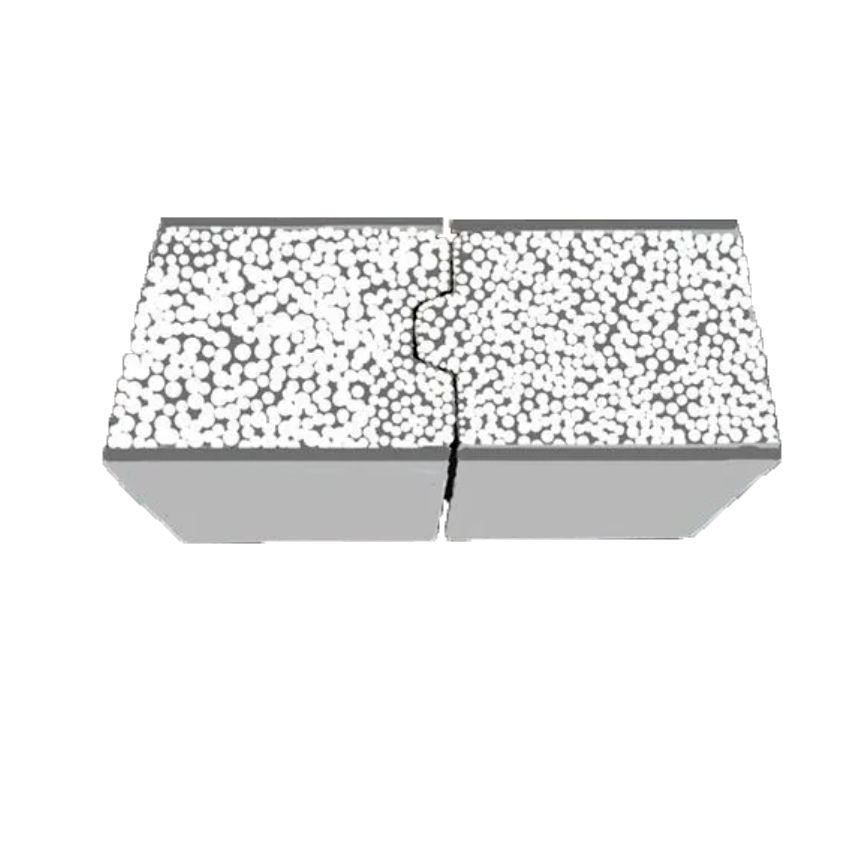

The Lightweight EPS Wall Panel Production Line is designed to produce lightweight composite wall panels with excellent thermal insulation, sound insulation, fire resistance, and durability.
The wall panels use EPS particle lightweight concrete as the core material and fiber cement boards as the outer layers, providing a strong and energy-efficient building solution.

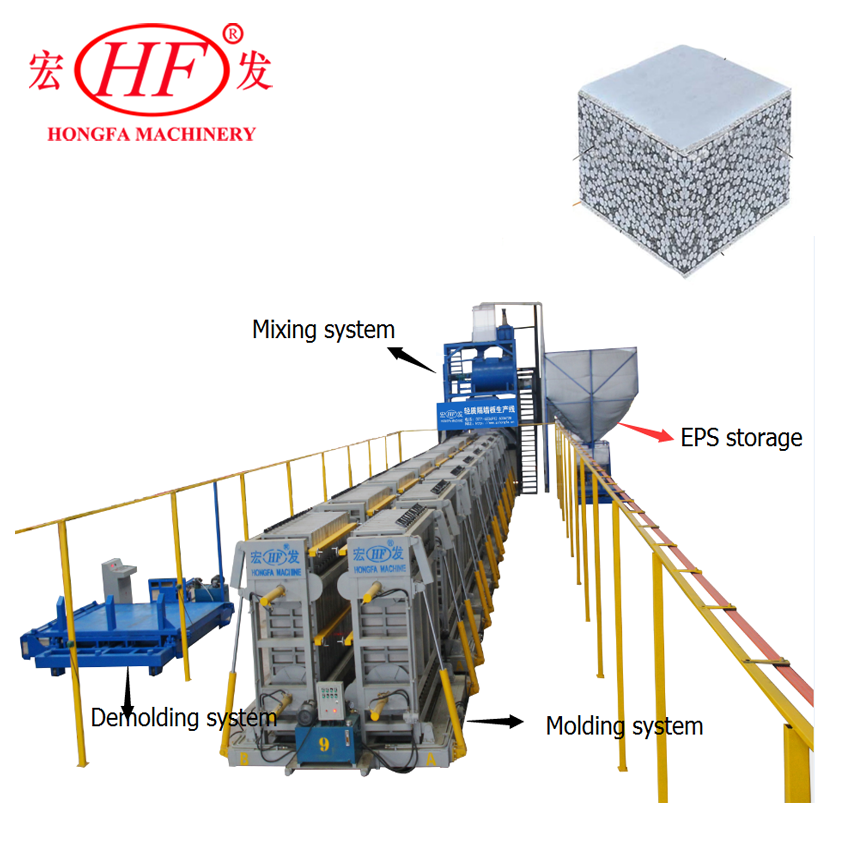

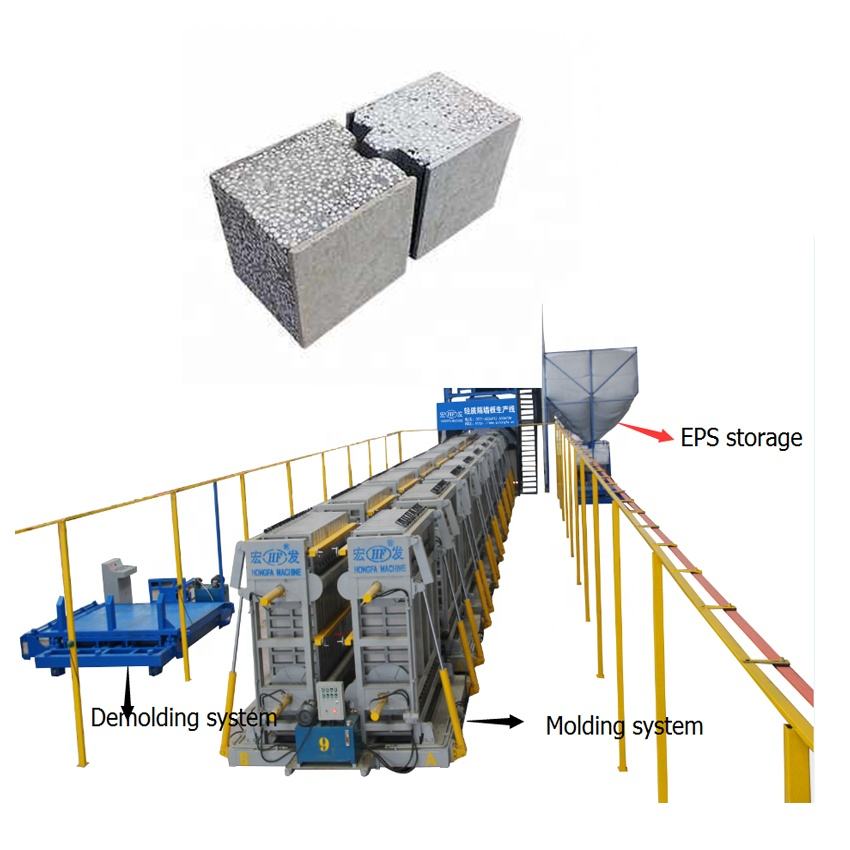

Main Equipment
Mixing Station

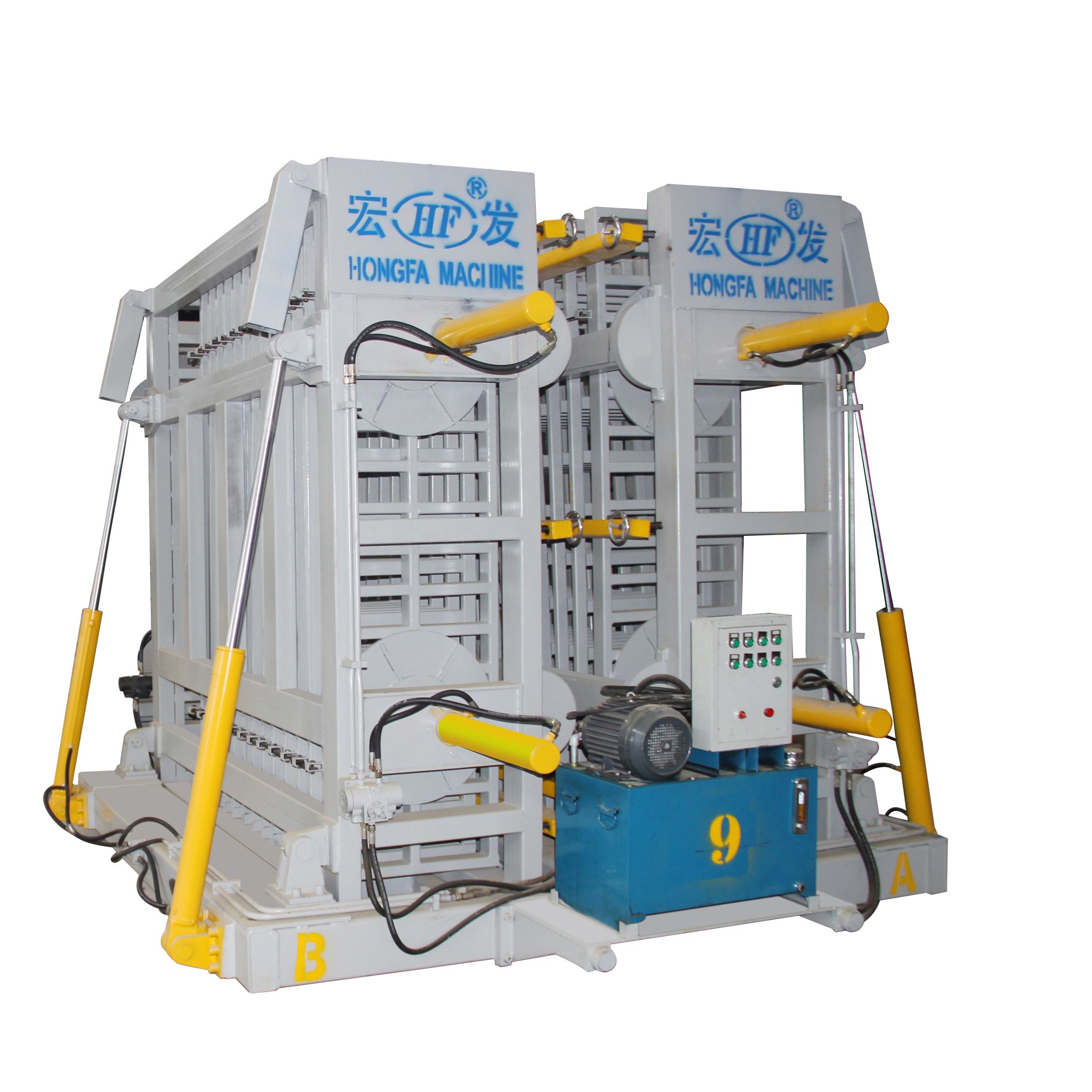

Vertical Double-Sided Wall Panel Forming Machine
Mobile Demolding & Tilting Platform
Transfer Casting Vehicle
Hydraulic System
Electrical Control System
Production Process
Raw Material Mixing → Mold Assembly → Material Casting → Panel Forming & Curing → Demolding → Tilting → Finished Panel
Key Features
PLC-controlled hydraulic forming system
Lightweight and high-strength wall panels
Good thermal and sound insulation
Excellent fire resistance and durability
Adjustable panel thickness
Efficient and stable production
Technical Parameters
Hydraulic Pressure: 20 MPa
Voltage: 380 V
Panel Length: 2440–3000 mm
Panel Width: 610 mm
Panel Thickness: 60–150 mm
Suitable for prefabricated buildings, partition walls, exterior walls, and energy-efficient construction projects.
