QT8-15D Block Making Machine

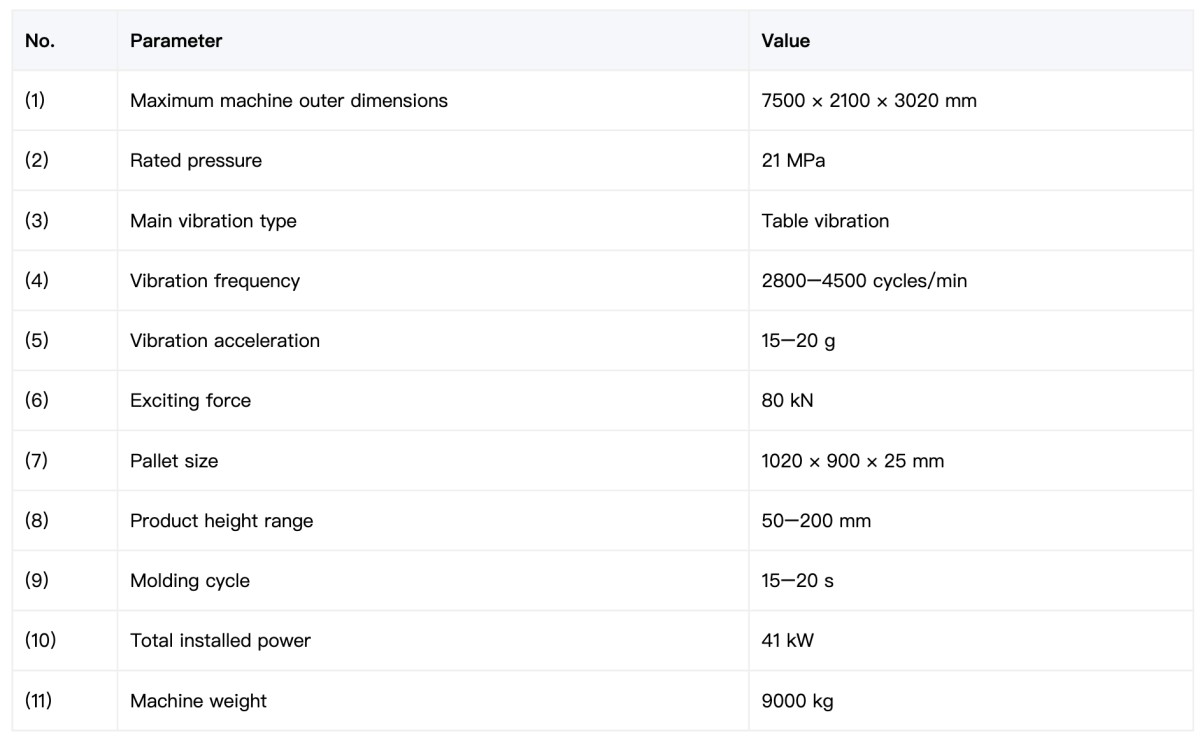

1. Main Technical Parameters

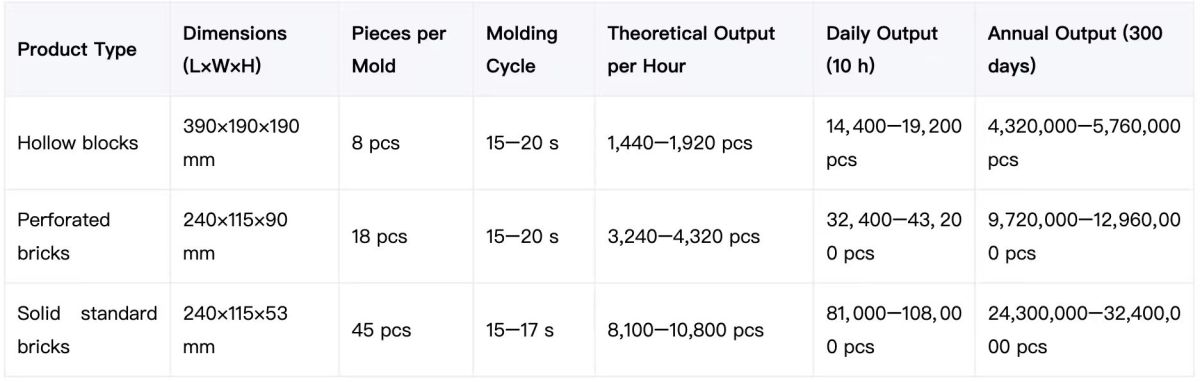

2. Production Specifications and Outputs for Main Products

3. Application and Structural Features

Integrated hydraulic system – designed in accordance with international standard patterns, featuring long service life and low energy consumption. The introduction of numerous imported components further ensures high quality.

Vibration system – consists of two parts: table vibration and pressure vibration, enabling rapid forming, high density, and good product uniformity.

Operation modes – offers both fully automatic and semi‑automatic modes to ensure uninterrupted production.

Variable‑frequency stepless speed regulation – provides reasonable operating speeds, accurate deceleration braking, and precise positioning.

Database system – intelligent service functions allow recording, resetting, data storage, file retrieval, warning, troubleshooting, and report printing.

Self‑diagnosis function – automatically detects faults to guarantee production safety.

Metering and control system – high‑precision and fully automatic.
