Moisture is a process variable, not just a mix parameter

Raw material moisture affects a lightweight block making machine long before a block reaches curing or inspection. It changes the actual water-to-binder ratio, the bulk volume of aggregates, mixer load, mold filling behavior, green strength, and the reliability of automated feeding. When moisture is not controlled, an apparently correct batch formula can produce blocks with inconsistent density, dimensional variation, weak edges, surface cracking, or unstable compressive strength.

The critical point is that “moisture content” is not one universal setting. The acceptable condition depends on the block technology, raw material type, mixing method, and curing regime. A lightweight aggregate concrete block, a foamed concrete block, and an aerated concrete product do not respond to water in the same way. Quality control must therefore manage moisture as a measured material property linked to a defined recipe, rather than relying on visual judgment of whether a mix “looks wet enough.”

The first effect: the real water-to-binder ratio changes

Most production formulas specify added water by mass. That calculation is incomplete if sand, stone dust, lightweight aggregate, recycled fines, fly ash, or other inputs already contain water. Moisture carried by raw materials becomes part of the batch water. If it is not deducted from the water dosing setpoint, the effective water-to-binder ratio rises.

Even a modest moisture change in a high-volume aggregate can introduce a substantial amount of unplanned water into a batch. This is especially important where fine sand or crushed fines are stored outdoors. Rainfall, humidity, drainage conditions, pile height, and the time since material delivery can all change their moisture condition. A formula that was stable during dry weather can become over-watered without any adjustment to the batching program.

Excess effective water can improve short-term flowability while reducing control over the finished block. The mix may compact differently, segregate more easily, and release water during handling or early curing. After evaporation, the hardened product may contain a more open pore structure than intended. The practical consequences can include lower strength, increased water absorption, edge damage during demolding, and density variation between production shifts.

Insufficient effective water creates a different but equally serious risk. Dry mixes may not coat particles uniformly, cementitious binders may hydrate unevenly, and lightweight aggregates may absorb water from the paste rather than contributing to workable compaction. In vibro-press production, an under-moisturized mix may leave voids at corners and webs, create weak interfaces between successive material layers, and cause friable green blocks that chip during transfer.

Moisture has different consequences for different lightweight materials

Lightweight aggregate is often highly absorptive. Expanded clay, pumice, volcanic materials, recycled porous aggregate, and similar inputs do not behave like dense natural gravel. Their measured surface moisture and their internal absorption are separate issues. A batch can appear dry at the surface while still absorbing process water during mixing. Conversely, pre-wetted aggregate can carry significant free water into the mixer if drainage is poor.

The production objective is not necessarily to use dry lightweight aggregate. Controlled preconditioning may be necessary to prevent rapid absorption from destabilizing the mix. What matters is consistency: the moisture state and absorption behavior must be known well enough for the water dosing system to compensate reliably.

Fine powders create another form of risk. Fly ash, silica-containing fines, lime, cement, gypsum, and similar materials can bridge or adhere inside hoppers when moisture rises. The resulting problem is not limited to mix water. Poor flow can cause inaccurate weighing, delayed discharge, material carryover, or sudden release of compacted material into a later batch. A moisture-related feeding error may therefore show up as a strength fluctuation or density anomaly rather than an obvious wet-mix problem.

For foamed concrete and other systems using preformed foam, base slurry moisture influences foam stability and pore distribution. A slurry that is too thin may allow bubbles to coalesce or migrate before setting. A slurry that is too stiff can make foam incorporation uneven, creating local density differences. Water quality, temperature, mixing energy, and foam-agent dosage also matter, but moisture inconsistency in the solids makes their control less meaningful.

Autoclaved aerated concrete uses a distinct process logic. Slurry consistency influences the reaction rate, gas generation, rise profile, cutting condition, and green-cake stability. Moisture variations in sand slurry, recycled cake, and other constituents can affect density and dimensional consistency. In this process, “more water for better flow” can interfere with the balance between solids concentration, temperature, and gas-forming reaction. Control must be based on the specific formulation and process instructions rather than transferred from conventional concrete block practice.

Why wet aggregates distort batching accuracy

Batching systems generally weigh material mass, but moisture affects both mass and volume. If an aggregate feeder is controlled partly by volume, belt speed, gate opening, or assumed bulk density, the error can become larger than the water calculation alone suggests. Wet fines tend to clump and may not discharge uniformly. Saturated lightweight aggregate may have a higher bulk mass but a different packing behavior in the mold.

This creates a common quality-control trap: the aggregate scale may show the correct total weight, yet the batch contains less dry aggregate and more water than the recipe assumes. Binder proportion then becomes effectively higher or lower on a dry-material basis, depending on how the formula is managed. The finished blocks can meet an average density target while still showing inconsistent compressive strength or absorption performance.

Moisture also affects material flow between the bin, conveyor, hopper, mixer, and mold box. Wet sand can adhere to chute walls. Fine material can build up in corners and release intermittently. Sticky mixes may not distribute evenly across the mold. These are mechanical symptoms of moisture instability, and they should not be treated solely as machine adjustment issues.

Molding and demolding reveal moisture errors quickly

In a vibration-and-press lightweight block making machine, the moisture window is usually narrow. The mix must contain enough water for particle bonding and compaction, but not so much that it loses shape after the mold opens. This balance is often described as “zero-slump” or low-slump behavior, but the correct condition should be verified through repeatable production indicators rather than appearance alone.

When the mix is too wet, the material can stick to mold surfaces, drag at the stripper head, and deform as the pallet moves away. Edges may slump or tear, especially around thin webs and hollow sections. Excess paste can accumulate on the mold and tamper components, increasing cleaning frequency and changing the effective mold geometry over time. Wet material can also adhere to pallets, increasing the risk of block displacement during transfer.

When the mix is too dry, insufficient cohesion may leave rough surfaces, incomplete corners, weak arrises, and lamination-like defects. More vibration or pressing force is not always the answer. Excessive compaction energy applied to a dry, poorly bonded mix can increase equipment stress while failing to correct the underlying water deficit. It may also accelerate wear on mold liners, tamper heads, vibration components, and pallet-contact surfaces.

Green strength is a useful operational indicator because it reflects the combined effect of moisture, grading, binder condition, and compaction. A block that appears acceptable at demolding but breaks during stacking or transfer is not necessarily a handling problem. It may be evidence that the material water condition has shifted outside the validated process range.

Moisture influences density, but density alone does not prove stability

Lightweight blocks are often specified by dry density class, compressive strength, dimensional tolerance, and sometimes thermal or moisture-related performance. Raw material moisture affects these outcomes indirectly through compaction and pore formation. However, a wet green block is heavier simply because it contains more water. Measuring green weight without a controlled moisture basis can lead to incorrect conclusions about density control.

Quality checks should distinguish between fresh mass, curing-stage mass, and dry density determined under the relevant product test method. A block may meet a fresh weight target while later drying to a lower-than-expected density because excess water created additional void volume. Another block may seem dense when fresh but contain poorly distributed material or insufficient compaction in localized areas.

For this reason, density monitoring should be paired with visual inspection, dimensional checks, strength testing at the specified curing age, and review of batch moisture records. A single measurement cannot identify whether a density shift came from wet aggregate, changed grading, feeder inconsistency, excess foam, altered compaction, or a curing problem.

Curing cannot fully correct a poorly controlled moisture condition

Curing provides the temperature, humidity, and time needed for the binder system to develop strength. It does not remove the consequences of an incorrectly proportioned batch. Excess water may increase drying shrinkage and make blocks more vulnerable to cracking if drying occurs too rapidly. Inadequate water can limit hydration, particularly where the mix has poor internal moisture distribution or where curing conditions allow early moisture loss.

For steam-cured or heat-assisted production, blocks entering the curing stage with inconsistent water content may respond unevenly. Surface drying, thermal gradients, and local differences in hydration can become more pronounced. The outcome may include color variation, surface dusting, microcracking, or inconsistent strength development. The curing schedule should be validated for a controlled mix condition; it should not become a routine tool for compensating for variable aggregate moisture.

A practical moisture-control system needs measurement and response rules

Manual sampling remains important because it provides a direct check on automated sensors and helps identify changes in stockpile conditions. Moisture should be measured at the point that represents material entering production, not only at delivery. A sample taken from the dry outer surface of a pile can be misleading when the material beneath is saturated or when drainage has created wet zones near the base.

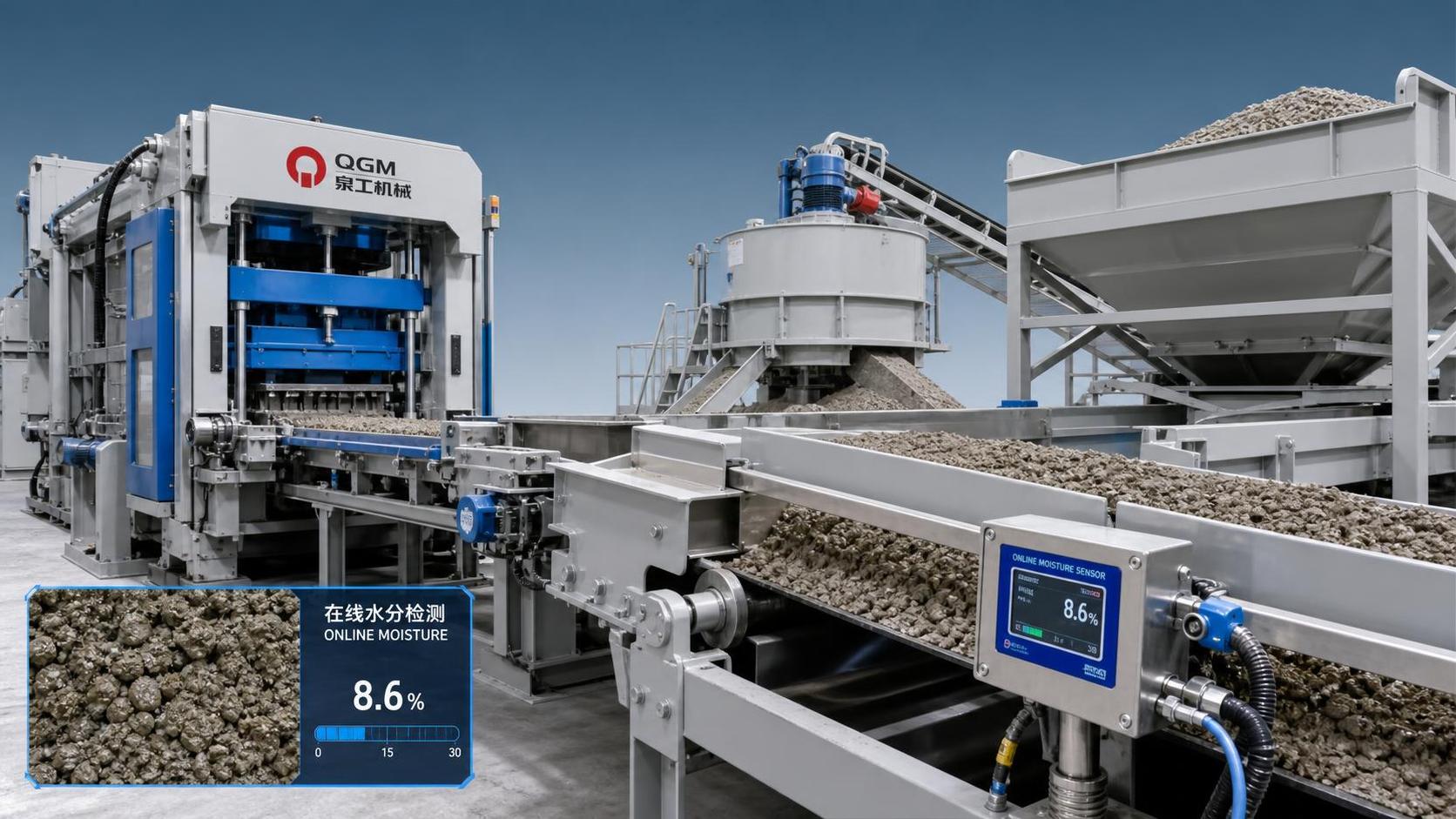

Online moisture probes can support faster correction, particularly on sand bins and conveyor belts, but they require calibration against representative samples. Their readings can be influenced by particle size distribution, temperature, material chemistry, compaction around the sensor, and buildup on the sensing surface. A sensor should be treated as part of the batch-control system, not as a substitute for verification.

Control records should connect four items: measured raw material moisture, calculated free water, actual water added, and the resulting batch and product checks. This makes it possible to identify whether a defect pattern follows a moisture change, a feeder problem, a material-source change, or an equipment condition. The response rule must be defined in advance: when moisture exceeds the validated range, the operator needs a clear instruction on water correction, mixing-time adjustment, hold-and-retest action, or material segregation.

Moisture measurements should also be expressed consistently. Confusion between wet-basis moisture and dry-basis moisture can produce avoidable calculation errors. The production team should use one stated convention in material specifications, laboratory records, batch software, and work instructions.

Safety risks are often hidden in wet-material handling

Wet raw materials can create slip hazards around conveyors, mixers, wash-down zones, and pallet lines. Leaks from over-watered mixes may spread cementitious slurry onto walking surfaces, where it can become both slippery and chemically irritating. Material buildup in chutes or hoppers introduces another risk: personnel may be tempted to clear bridged material manually while stored energy, moving equipment, or unexpected discharge remains possible.

A blockage caused by damp fines should be addressed through isolation, lockout procedures, and appropriate tools—not by reaching into a live hopper or conveyor. Where cleaning requires entry into equipment, the applicable confined-space and energy-isolation requirements must govern the work. Water also increases electrical risk where damaged cables, poorly sealed controls, or unsuitable cleaning practices are present.

Good moisture control reduces these exposures because it stabilizes material flow and reduces unplanned intervention. It also limits excessive housekeeping demands caused by slurry leakage, sticking molds, and carryover deposits.

What should trigger investigation

A sudden increase in block weight, mold sticking, poor edge definition, mixer-current changes, erratic feeder discharge, or a higher rate of green-block damage should prompt a moisture review before major machine settings are changed. The same applies when raw material deliveries change source, stockpiles are replenished, rainfall occurs, or lightweight aggregate conditioning is modified.

The strongest control approach is to treat moisture as a traceable input with a permitted operating range, not as an operator’s visual adjustment. A stable lightweight block making machine depends on stable material condition. Machine settings, vibration time, pressing force, and curing schedules can then be optimized against a reliable baseline rather than continually compensating for uncontrolled water.

When evaluating a block production line, the usefulness of moisture measurement, water-dosing correction, material-flow design, mixer performance, and mold-cleaning access should be assessed together. Equipment listings such as Concrete brick machine in morocco price QT3-15 hollow block machine business in Philippines should be reviewed against the actual raw-material variability and quality-control requirements of the intended production process, rather than on nominal output alone.
