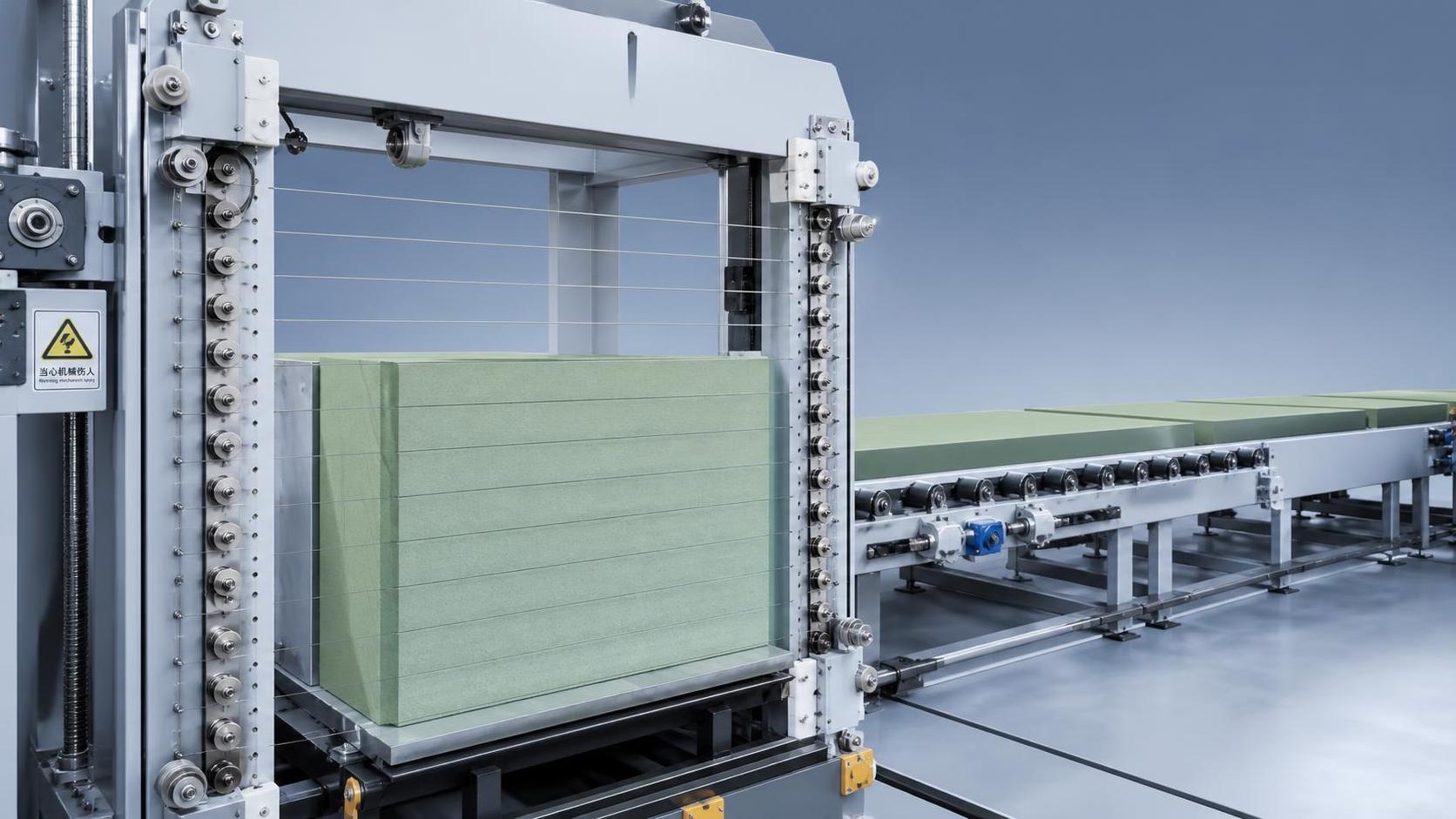

Cutting wire breakage in an AAC block machine is rarely caused by one isolated fault. In most cases, the wire is being asked to carry more load than it can tolerate because of excessive or uneven tension, cutting-frame misalignment, a hard or poorly conditioned green cake, wire damage, or an unsuitable cutting sequence. Replacing the broken wire may restore production briefly, but repeat failures usually mean the underlying load condition has not been corrected.

The fastest way to diagnose the problem is to look at when the wire breaks, where it breaks, and whether several wires fail in the same pattern. A wire that snaps during the first contact with the cake points to a different cause than one that fails at the end of the stroke or repeatedly breaks at the same guide position.

Start with the break pattern, not the replacement wire

After a wire breaks, maintenance personnel often focus immediately on wire diameter, supplier, or tensile strength. Wire quality matters, but it should not be the first assumption. A sound cutting wire can still fail quickly when the machine creates a localized overload.

Inspect the broken ends before removing them. A clean, sharp break often suggests sudden overload, such as a collision, hard inclusion, excessive tension, or abrupt movement. A frayed or necked-down break is more consistent with gradual wear, repeated bending, abrasion at a pulley or guide, or fatigue caused by fluctuating tension.

This approach prevents a common maintenance mistake: changing wire batches repeatedly without checking whether the cutting system is imposing the same damaging condition on every new wire.

Incorrect tension is the most common mechanical cause

A cutting wire needs sufficient tension to remain straight and produce a clean cut. Too little tension allows it to bow as it enters the green cake. The bowed wire drags rather than slices, increasing friction and causing inaccurate block dimensions. It may then catch on denser material or a guide component and snap.

Too much tension is equally risky. The wire begins the cutting cycle already close to its allowable working load. Normal resistance from the AAC cake, small speed changes, or a slight misalignment can create a peak load high enough to break it. Excessive tension also shortens fatigue life, especially where the wire passes over pulleys or changes direction.

The target is not simply “tight.” Tension must be consistent across the full wire set. If one wire is tighter than its neighboring wires, it reaches the cake first and absorbs a disproportionate share of the resistance. This is why isolated breakage in an otherwise normal cutting frame often deserves a tension comparison before more complex repairs are considered.

Check tensioning devices for sticking threads, damaged springs, leaking pneumatic or hydraulic components, and unequal adjustment positions. A tension system can appear correctly set while a seized mechanism prevents one wire from following the intended load. After installing replacement wires, allow the system to stabilize and recheck tension rather than assuming the initial setting remains unchanged.

Frame alignment and wire-path condition create hidden overload

In an AAC block machine, the cutting frame, guide rollers, pulleys, and wire anchors must keep each wire on a stable, straight path. Even a small misalignment makes the wire rub against a pulley flange, guide edge, worn groove, or neighboring wire. The result is surface damage that may not be obvious until the wire fails under cutting load.

Look for polished grooves, metal burrs, accumulated slurry residue, worn pulley profiles, and wire marks outside the intended running position. Rotate pulleys by hand during a stopped inspection. Rough movement, side play, or resistance can indicate bearing trouble that makes wire tension fluctuate during the cycle.

Frame squareness matters as well. If the cutting frame is twisted or not parallel to the green-cake travel path, wires do not enter the material evenly. One side may start cutting earlier, and the first-contact wires carry the highest load. This often appears as breakage concentrated on one side of the machine rather than evenly distributed across the frame.

Do not judge alignment only while the equipment is idle. Some faults appear when the frame moves under load: loose mounting bolts, worn linear guides, drive backlash, or uneven cylinder movement can shift the frame during the cutting stroke. A slow observation cycle, followed by measurement against the machine reference points, is more useful than a quick visual check alone.

The green cake may be outside its usable cutting window

Cutting wire is designed to pass through a green AAC cake with controlled resistance. If the cake is too soft, it may deform, stick to the wire, or collapse around the cut. If it is too hard, the wire meets excessive resistance and can break, particularly at the leading edge or where density varies.

Hardness is affected by the slurry recipe, mixing uniformity, casting temperature, rising behavior, pre-curing conditions, and the time between mould handling and cutting. A machine fault should not be assumed when wire breakage begins after changes in raw materials, mix proportioning, production rhythm, or ambient conditions.

Uneven hardness is often more damaging than a uniformly hard cake. A wire may cut smoothly through most of the section and then strike a denser zone, incomplete mixing area, hardened skin, or embedded contaminant. The sudden resistance produces the break. If failures occur at a similar position in multiple cakes, inspect the material process and mould preparation along with the cutting machine.

Foreign material deserves immediate attention

Metal fragments, hardened lumps, tools left near the mould, damaged mould coatings, or debris from upstream equipment can create an abrupt cutting obstruction. Such events usually leave a localized sign: a sharply broken wire, an unusual mark in the cake, or damage across one line of travel. Continuing to cut after this type of failure can damage multiple wires and the cutting frame.

Remove the obstruction, inspect the affected guides and anchors, and examine the cake handling route. Simply increasing wire tension to force a cut through a hard spot makes the next break more likely.

Cutting speed and machine motion must match the cake condition

Higher cutting speed does not automatically improve throughput. When the cake is near the harder end of its workable condition, excessive frame speed raises cutting resistance and shock loading. Rapid acceleration or deceleration can also cause a momentary tension spike, particularly on longer wires.

Slower cutting can be appropriate when the cake is denser, the product section is larger, or the cutting stage involves more resistance. However, slowing the machine will not solve wire damage caused by a burr, misalignment, or severe over-tension. The adjustment should follow inspection, not replace it.

Check that horizontal and vertical cutting motions are synchronized with cake positioning. A wire can be damaged when cutting begins before the cake is fully located, when transfer equipment causes movement during the stroke, or when a frame is not returning to its home position accurately. Repeated failures at the beginning or end of travel often point to a timing, limit-setting, or mechanical-stop issue.

Wire selection and installation still matter

Use the wire type and diameter specified for the machine and product format. A stronger wire is not always the correct solution. It may alter the cutting behavior, place more load on the frame and tensioning system, or mask a process problem until another component fails. The wire must work with the pulley profile, anchor method, cutting geometry, and expected cake resistance.

During installation, avoid kinks, sharp bends, twisting, and contact with contaminated surfaces. A small kink becomes a stress concentration under tension. Verify that each wire is seated correctly in its guides and that the wire ends are secured without crushing or damaging the strand.

Storage also affects reliability. Wires exposed to moisture, corrosive dust, welding spatter, or careless handling can develop surface damage before installation. Keeping wire stock protected and clearly identified reduces confusion between similar wire sizes or grades.

A practical inspection sequence after repeated breakage

1. Stop the affected cutting cycle and record the wire position, break location, cutting stage, and cake condition.
2. Inspect broken wire ends and nearby guides for abrasion, burrs, residue, or abnormal contact marks.
3. Compare tension across the complete wire set and examine the tensioning mechanism for unequal movement.
4. Check pulley alignment, bearing condition, anchor points, frame parallelism, and travel smoothness.
5. Review the green cake: cutting time, firmness, visible density variation, hardened lumps, and foreign material.
6. Confirm cutting speed, acceleration, sequencing, and cake positioning during the affected operation.
7. Install replacement wires correctly, run a controlled trial, and monitor the first cycles instead of returning immediately to full production speed.

Recording this information turns repeated wire failure into a traceable fault rather than a recurring emergency. It also helps distinguish a machine-related issue from a material-process issue, which is essential when maintenance and production teams need to correct the problem together.

Do not use tension as a shortcut for difficult cutting

When cuts become rough or slow, increasing tension is a tempting response. It can improve straightness briefly, but it also reduces the wire's tolerance for hard spots, alignment error, and motion shock. The better question is why cutting resistance changed. Review cake condition and wire-path friction before raising the load.

Similarly, replacing every wire after a single break is not always necessary, but leaving damaged neighboring wires in service can lead to sequential failures. Inspect the wires that shared the same frame area and replace those showing abrasion, flattening, corrosion, kinks, or loss of correct tension.
