Steam curing for autoclaved aerated concrete (AAC) blocks must follow a controlled heat-and-pressure cycle rather than a simple exposure to hot steam. The required conditions are a stable saturated-steam environment, gradual pressure changes, sufficient holding time at the target temperature, reliable condensate removal, and a green cake that has gained enough pre-autoclave strength to withstand the cycle. When these conditions are aligned, the calcium silicate hydrate phases formed during mixing are converted into a more stable crystalline structure, commonly dominated by tobermorite. That reaction gives AAC its useful combination of compressive strength, low density, dimensional stability, and thermal performance.

An autoclaved aerated concrete block machine is only one part of this process. Cutting, loading, autoclave charging, steam control, discharge, and cooling must work as one sequence. A block that looks acceptable before autoclaving can still crack, warp, lose edge integrity, or show variable strength if the curing curve is unsuitable for its density, raw-material chemistry, cake size, or loading arrangement.

Typical autoclave curing range

AAC is normally cured with saturated steam at approximately 180-195 degrees C, corresponding broadly to an autoclave pressure near 0.8-1.3 MPa gauge. Many production lines operate close to the upper part of this range, but the correct setpoint is determined by the raw mix and the intended block grade, not by pressure alone. The curing cycle commonly includes a controlled heating period, a high-temperature holding period, and a controlled pressure-release and cooling period. Total autoclave residence often extends over several hours.

The holding stage must be long enough for heat to penetrate the full stack and for hydrothermal reactions to develop through the block section. A short holding stage can leave the center of the load under-cured even when the autoclave sensor shows the specified temperature. Conversely, extending the cycle without a material-based reason increases steam consumption and can expose weak green material to unnecessary thermal stress.

Pressure and temperature must be read together

Autoclave pressure is not an independent quality target. Under saturated conditions, pressure and temperature are linked by the steam curve. A pressure indication may appear normal while the actual curing environment is less effective if the vessel contains excessive air, the steam is wet, or the temperature measurement does not represent the coldest location in the load. For this reason, steam pressure, vessel temperature, steam supply condition, and the behavior of representative loads should be evaluated together.

Non-condensable gases are particularly disruptive. Air trapped in the autoclave reduces heat transfer and creates local differences between the steam atmosphere and the blocks. The problem is often mistaken for insufficient holding time because strength may improve when the holding stage is extended. Yet the root cause may be inadequate venting during steam admission, a leaking valve arrangement, or a loading pattern that prevents air from escaping freely. Adding time alone raises energy use without fully correcting uneven curing.

Steam should also be sufficiently dry at the point of entry. Heavy condensate in distribution lines can introduce pulses of water and unstable heat transfer. This does not mean steam must be superheated: AAC curing relies on saturated steam conditions. It means the steam system must separate and drain condensate before delivery, insulate supply piping appropriately, and keep traps, separators, strainers, and drains functional. Water pooling in a low point of the autoclave can cool the local environment and affect the bottom layers of a load.

The green cake sets the limit for heating speed

Before blocks enter the autoclave, the aerated cake has been mixed, expanded, pre-cured, and cut. Its condition determines how rapidly the autoclave can safely raise temperature and pressure. A cake with insufficient green strength is vulnerable to deformation under its own weight and to thermal expansion stresses. A cake that is too dry or has already developed uneven moisture can respond differently from one with uniform internal water distribution.

The pre-curing stage must produce a coherent structure without taking so long that cutting quality deteriorates or the material becomes difficult to machine cleanly. The target is not simply a hard cake. It is a cake with stable geometry, enough early strength for wire cutting and transfer, and a moisture condition that permits even heat transfer during autoclaving. Variations in lime reactivity, cement behavior, gypsum dosage, slurry temperature, aluminum powder dispersion, or water-to-solid ratio can all shift the suitable pre-curing window.

When cracks appear immediately after autoclave discharge, the autoclave cycle is an obvious suspect, but the origin may be earlier. Poorly dispersed aluminum can create uneven pore formation. An unstable slurry can produce density layers. Cutting before the cake has set sufficiently can initiate microcracks that become visible only after pressure release. Distinguishing the timing of the defect is more useful than changing the steam setting at random.

Heating should follow the load, not only the vessel

The rate of temperature rise needs to account for block dimensions, stack height, trolley design, spacing between packs, and the initial temperature of the green product. Dense or tall loads heat more slowly at the core than thin, open stacks. A rapid steam admission may bring the vessel to its setpoint quickly while the internal block temperature lags behind. If the holding timer begins from vessel setpoint rather than from demonstrated load heat-up, the effective curing time is shorter than assumed.

Thermal gradients create stress because the outer zones expand and react before the core. The risk is greater near sharp corners, thin webs, cut grooves, and blocks whose moisture content differs across the load. A staged heating profile is often more stable than sending full steam flow immediately. Early low-pressure admission raises the load temperature more gently; later stages can bring the vessel to the main curing condition after the stack has equilibrated.

There is no single ramp rate suitable for every line. The appropriate profile should be established from the green strength, product density, vessel capacity, steam-header response, and measured temperature difference between outer and inner load positions. A change in block format or stacking pattern can justify re-evaluating the curve even when the raw-material recipe has not changed.

Holding time begins after heat penetration

The most important duration is the effective period at curing temperature throughout the product, not merely the time shown on the autoclave program. Internal temperature probes used during process validation can reveal whether central blocks reach the intended condition late in the cycle. Once this behavior is known for a stable loading arrangement, the controller program can include a heating allowance before the main hold.

Material chemistry affects the required hold. AAC formulations based on different sources of silica, lime, cement, recycled slurry, and gypsum do not react at exactly the same speed. Finely ground silica tends to provide a different reaction surface from coarser material. Changes in fineness, particle-size distribution, or reactive calcium content can alter the development of the final microstructure. An autoclave program that worked with one sand source should therefore be confirmed after a substantial raw-material change.

Strength testing alone does not tell the whole story. Blocks may meet an early compressive result while retaining excessive dimensional movement, moisture sensitivity, or non-uniform structure. Density, dry shrinkage behavior, cut-face appearance, edge condition, and the difference between top and bottom samples provide additional evidence. A recurring pattern of weaker center blocks points more strongly to heat penetration, steam distribution, or stacking than to a general lack of pressure.

Depressurization deserves the same control as heating

At the end of the holding period, pressure must be reduced progressively. Fast venting can cause steam within pores and capillaries to expand abruptly, especially when the block core remains hotter than the outer surface. The resulting cracks may be fine, intermittent, or concentrated near corners and edges. They can be overlooked until handling, palletizing, or later drying exposes the damage.

A controlled release schedule allows pressure, moisture, and temperature to equalize more gradually. The final cooling phase should also consider the difference between autoclave temperature and the ambient conditions at discharge. Cold external air contacting a hot, moist load can introduce another thermal gradient. Where products are moved directly to a cooling area, airflow should avoid creating a sharp temperature difference across one side of a stack.

Pressure-release problems can resemble problems caused by weak green cakes. The distinction is often visible in timing. Damage present before loading or immediately after cutting indicates an upstream issue. Damage that appears during discharge, or after a consistently abrupt venting event, points toward the final autoclave stages. Keeping batch records of green-cake age, load arrangement, pressure curve, hold duration, discharge condition, and defect location makes these patterns easier to isolate.

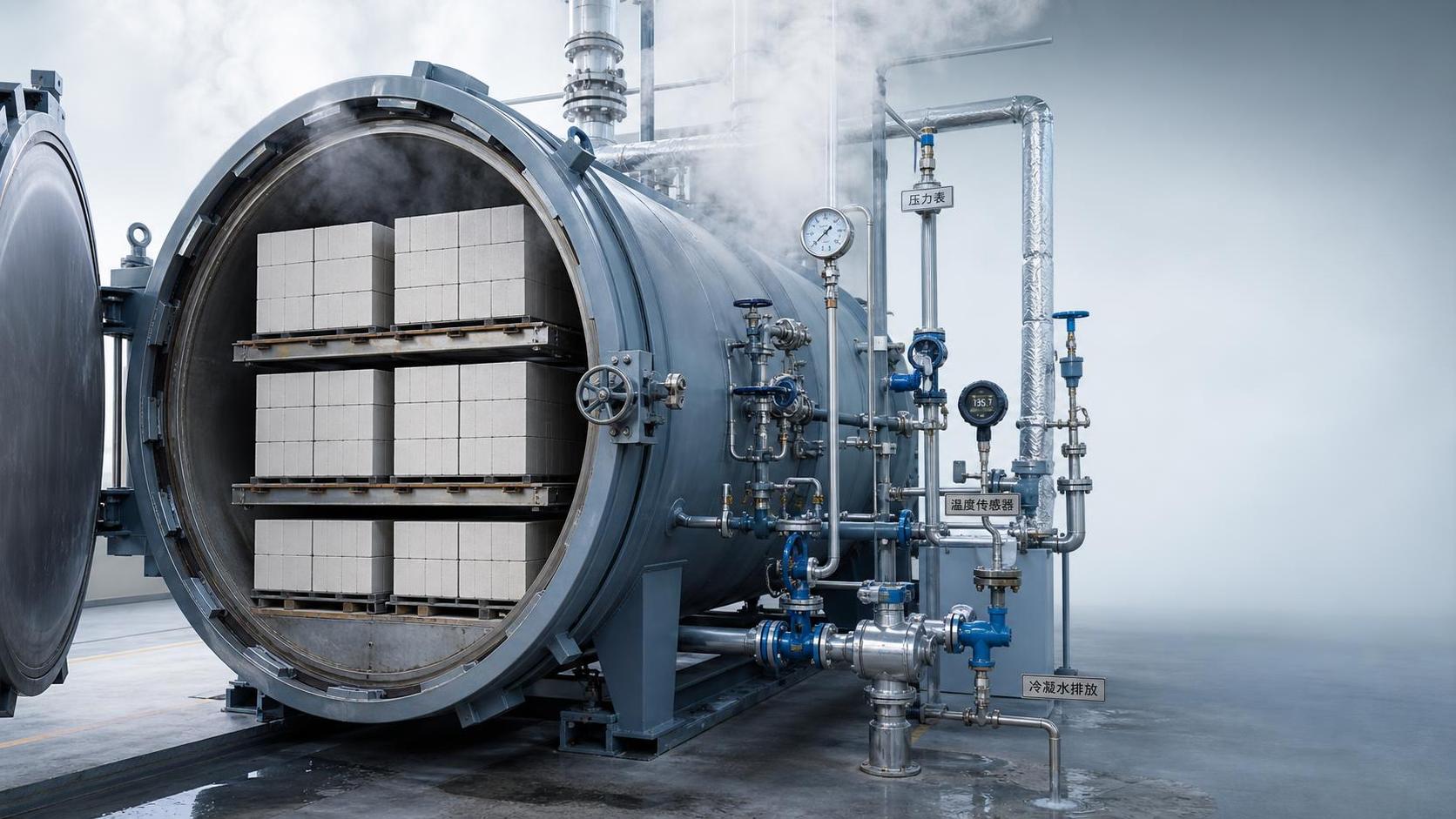

Steam distribution and load arrangement

Uniform curing depends on clear flow paths around the loaded material. Trolleys, pallets, separators, and pack spacing should allow steam to reach all faces without creating blocked zones. Overloading the autoclave may appear efficient per cycle, yet poor circulation can increase rejects or force longer holds. The lowest tier is often vulnerable to condensate effects, while center positions may receive heat later than exposed outer positions.

Autoclave doors, gaskets, safety interlocks, pressure gauges, temperature transmitters, relief devices, steam valves, and condensate traps are part of curing quality control as well as plant safety. A drifting pressure transmitter can lead to incorrect assumptions about the steam curve. A partially blocked trap can create water hammer and local cooling. Door-seal leakage can interfere with pressure stability and cause a controller to extend steam demand unnecessarily. Maintenance records should be reviewed alongside block test results when a defect trend emerges.

Instrumentation should be checked against a reliable reference at planned intervals, particularly after repairs to control valves, transmitters, or steam lines. The controller trend is valuable only when the measured values reflect the vessel condition. Recording pressure and temperature over each batch also makes it possible to identify slow pressure buildup, unstable steam supply, abnormal venting, or a hold stage that begins before the load is fully heated.

Practical signs of an unsuitable curing cycle

• Cracks concentrated at corners or thin sections: often associated with excessive heating speed, rapid depressurization, or uneven green moisture.
• Soft or weaker material in the center of a trolley load: suggests insufficient heat penetration, restricted steam circulation, trapped air, or an effective hold that is shorter than programmed.
• Bottom-layer variation: calls for inspection of condensate drainage, steam distribution, pallet condition, and loading clearance.
• Blocks that chip heavily during later handling: can result from incomplete hydrothermal curing, but weak cutting-stage geometry and late cooling shock should also be examined.
• Rising steam consumption without better product consistency: often indicates leakage, wet steam, poor insulation, prolonged venting, or a cycle being used to compensate for an upstream material issue.

A sound curing specification therefore defines more than a maximum pressure and a timer. It should state the steam condition, heating profile, target pressure-temperature relationship, effective high-temperature hold, venting sequence, depressurization profile, permissible loading pattern, and the measurements used to confirm repeatability. The specification should also identify which changes require revalidation, such as a revised AAC density grade, different sand fineness, altered cake dimensions, or a new trolley arrangement.

Where a production area also handles conventional vibro-pressed products, equipment selection and curing requirements should remain clearly separated. A machine such as QMJ4-30 machines fabrication de blocs/block maker machine/brick making machine is associated with block-forming workflows, whereas AAC autoclave curing requires dedicated pressure-vessel control, steam distribution, and batch handling matched to the aerated material process.
