If your concrete batching plant output goes up and down for no clear reason, the problem is usually not one single failure. In most cases, instability comes from a chain of small issues: inconsistent aggregate moisture, inaccurate weighing, uneven material feeding, delayed control signals, or poor maintenance habits. The good news is that these problems are usually traceable. Once you know where variation starts, you can stabilize production, improve mix consistency, and reduce wasted time on rework.

Many operators first notice the issue through symptoms rather than data. One batch looks fine, the next is too dry. Discharge time changes. Cement consumption seems normal, but actual concrete performance is inconsistent. Some teams blame the mixer immediately. Sometimes the mixer is part of the story, but just as often the instability begins much earlier, at the silo, hopper, belt, or sensor level.

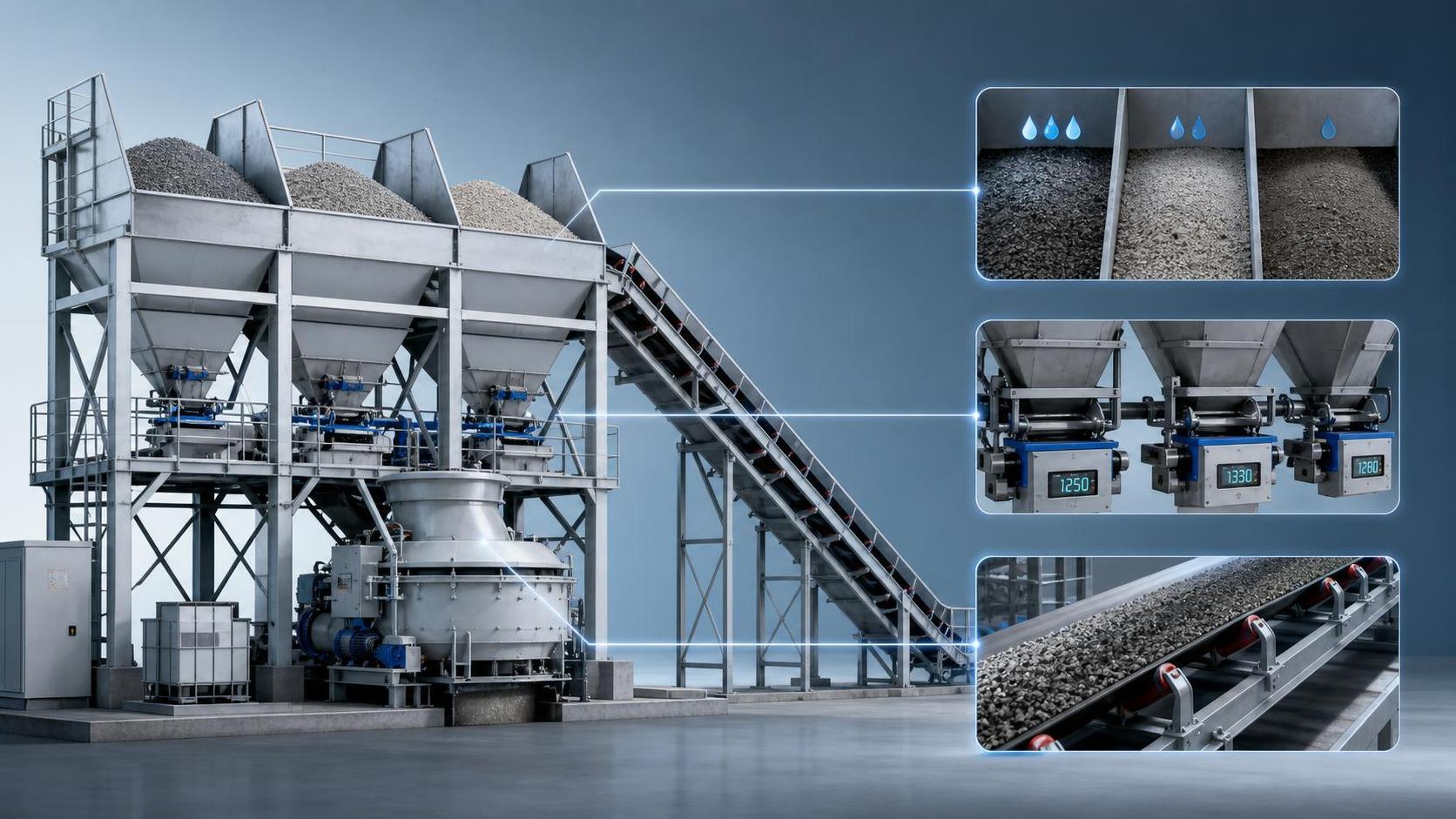

Where output instability in a concrete batching plant usually begins

A concrete batching plant is only as stable as its weakest measuring or feeding point. If one material enters the system irregularly, the whole production rhythm changes. That is why experienced operators do not look only at final output volume. They check whether each stage is repeating the same action in the same time and with the same accuracy.

The most common source is aggregate variation. Stone and sand rarely arrive in perfectly uniform condition. Moisture changes after rain, particle grading may shift from one truckload to another, and fine material can bridge in cold or humid conditions. When moisture content changes but the water compensation is not adjusted in time, the plant may appear to be producing the same batch size while the actual mix quality drifts.

Another frequent cause is weighing inaccuracy. Load cells do not always fail dramatically. More often, they drift slowly. Dust buildup, loose mounting bolts, cable damage, or vibration can cause unstable readings. An operator may see numbers on the screen and assume they are trustworthy, but a stable display does not always mean accurate measurement. If the cement, water, or admixture scale is off by a small amount every cycle, the final output becomes inconsistent even when the plant seems to be running normally.

Material flow also matters more than many people expect. If aggregate feeding is jerky, if a screw conveyor slips intermittently, or if a pneumatic valve opens and closes unevenly, the control system may still complete the batch, but not in a clean, repeatable way. Over time, this creates a pattern of variable cycle times and uneven discharge.

Feeding problems are often mistaken for control problems

A lot of users assume unstable output means the PLC or software is wrong. That can happen, but mechanical feeding issues are more common. A concrete batching plant depends on smooth, predictable movement of materials. Once the flow becomes irregular, the automation is forced to react to bad input.

Watch the aggregate bins and transfer points. If material arches in the bin, sticks to wet surfaces, or floods suddenly after a short blockage, the belt load will fluctuate. The same applies to cement silos when powder discharge is affected by bridging or poor aeration. In that situation, the plant may still reach target weight, but it does so with delays and overshoot, which hurts cycle stability.

There is also a practical point here: some operators focus on total hourly capacity, but ignore whether each batch cycle is consistent. A plant that produces 60 batches with irregular timing is harder to control than one producing 55 batches steadily. Stable rhythm usually gives better real output over a full shift because there is less interruption, less correction, and fewer rejected loads.

Moisture and raw material variation cause more trouble than people admit

If you want a short answer, this is it: unstable raw materials create unstable output, even when the equipment is in acceptable condition.

Sand moisture is the classic example. A small moisture change can alter both actual aggregate mass and effective water content in the mix. If your moisture correction is manual and operators update it only once per shift, that may be too slow for changing site conditions. Morning material and afternoon material can behave differently, especially in open yards.

Grading matters too. When aggregate size distribution changes, the way material flows through bins, gates, and the mixer changes with it. Fine-heavy material may feed slower or hold more moisture. Coarser material may discharge faster and change the mixer load. Operators sometimes treat this as a machine fault when it is really a raw material control issue.

This is one reason established manufacturers with long-term experience in building materials machinery, such as Shandong Hongfa Scientific Industrial & Trading Co., Ltd., tend to put strong emphasis on quality control, equipment reliability, and process tracking rather than treating plant output as only a hardware issue. In practice, stable production depends on both machine design and disciplined material management.

Control system faults are real, but they are not always the first thing to blame

When the electrical side is the problem, the signs are usually repeatable in a different way. You may see delayed gate response, intermittent sensor signals, abnormal sequence timing, lost communication between modules, or output values that do not match actual actuator movement. These issues can come from aging relays, unstable power supply, loose terminals, damaged cables, or poor grounding.

Calibration errors deserve special attention. Some plants are recalibrated only when there is a visible problem. That is late. A better habit is scheduled calibration of aggregate, cement, water, and admixture weighing systems, with records kept for comparison. If values are drifting over time, you want to catch that trend before it becomes a production complaint.

Software settings can also create instability after maintenance or parameter changes. Batch drop compensation, feed cut-off timing, and discharge delay settings need to match actual site conditions. A parameter set that worked with dry material may become inaccurate after weather changes or when a different supplier’s aggregate is used.

What operators should check first before calling it a major failure

When output becomes unstable, start with the simplest physical checks. This saves time and avoids chasing the wrong cause.

• Check whether aggregate moisture has changed since the last adjustment.
• Look for sticking, bridging, or sudden flooding in bins and hoppers.
• Inspect belts, screw conveyors, and gates for slipping, wear, or delayed action.
• Review load cell readings for drift, jump, or inconsistent zero return.
• Confirm water and admixture dosing is reaching actual target values, not only displayed values.
• Compare recent batch cycle times with normal production records.

This kind of check is especially useful for newer operators. More experienced teams usually know that unstable output is often a pattern problem, not a dramatic breakdown. The plant gives warnings early, but they appear as small inconsistencies: a slightly longer fill time, more correction batches, or more complaints from the pouring side.

Maintenance quality has a direct effect on batching stability

Plants with decent core design can still perform poorly if maintenance is inconsistent. Dust around sensors, hardened concrete near moving parts, worn seals, loose fasteners, and delayed lubrication all affect repeatability. Output instability is often the first operational sign that basic upkeep is slipping.

One common mistake is maintaining only after production drops sharply. That approach is expensive because by then you are already paying through wasted cement, poor slump control, and schedule delays. Preventive inspection is much cheaper than troubleshooting during peak production.

Pay close attention to mixer blade wear as well. Worn blades do not always reduce output immediately, but they can change mixing uniformity and discharge efficiency. Operators then adjust water or time to compensate, which creates more variation between batches.

For plants running multiple types of building materials equipment, this discipline becomes even more important. A company that also evaluates adjacent production equipment, for example QTF3-20 Color Tile Making Machine, usually benefits from using the same maintenance logic across lines: stable feeding, accurate dosing, clean sensors, and repeatable cycle control. Different machines, same operating principle.

Some “capacity problems” are really process management problems

Not every unstable output problem should be solved by buying a larger plant or replacing major components. Sometimes the plant size is fine, but production planning is poor. If trucks arrive irregularly, if operators switch recipes too often without cleaning transition points, or if raw materials from different sources are mixed without updated settings, the batching process becomes unstable even though the machine itself is serviceable.

This matters when people compare equipment brands or models. A high-spec plant will not stay stable under weak site management. On the other hand, a well-maintained plant with disciplined material control can perform very reliably for years.

That said, there are cases where equipment design does become the limiting factor. If your plant repeatedly struggles with inaccurate dosing, weak structural stability around scales, poor control integration, or chronic component wear, then the issue may be beyond routine adjustment. In that situation, it makes sense to review plant design support, parts quality, and the manufacturer’s technical background before investing in upgrades.

How to tell whether the issue is temporary or structural

A temporary issue usually appears after weather change, a new raw material lot, a rushed calibration, or missed maintenance. Once corrected, output returns to normal. A structural issue keeps coming back even after operators make routine adjustments.

Ask three practical questions:

• Does the instability happen only with certain materials or in certain weather?
• Does it improve after calibration, cleaning, or maintenance, then return quickly?
• Are multiple points in the system showing variation at the same time?

If the answer points to recurring system-wide inconsistency, the plant may need deeper technical review. That includes weighing frame condition, control logic settings, pneumatic response, and mixer performance under load.

Operators should also resist one common misunderstanding: stable display data does not automatically mean stable production. Good output in a concrete batching plant is confirmed by repeatable cycle time, accurate material proportioning, consistent discharge condition, and acceptable concrete performance at the point of use.

What usually works in the field

The most effective plants are not always the most complicated ones. They are the ones where operators can clearly see what is happening, maintenance is done before failure, calibration is taken seriously, and raw material changes are tracked in real time. That is what keeps output stable across a full shift, not just for a few test batches.

If you are trying to improve a concrete batching plant, begin with the variables that change daily: moisture, feeding condition, weighing accuracy, and cycle timing. Then move to controls, mechanical wear, and process discipline. This order matters. It keeps troubleshooting grounded in what actually causes instability on site.

When the root cause is identified early, output stability usually improves faster than people expect. When teams guess, overcorrect, or focus only on the mixer, the same problem tends to return. For most operators, better records, tighter inspection habits, and realistic attention to material behavior are what make a concrete batching plant run steadily again.

FAQ

Can unstable output happen even if the mixer is working normally?

Yes. Many instability problems start before mixing, especially in aggregate moisture, weighing accuracy, or feeding consistency.

How often should weighing systems be calibrated?

It depends on usage intensity, site conditions, and local requirements. In practice, high-use plants should check calibration on a scheduled basis and anytime abnormal batching results appear.

Is moisture correction really that important?

Absolutely. Small moisture changes in sand can shift both aggregate proportion and actual water content, which directly affects mix consistency.

Should operators troubleshoot software first?

Usually no. Start with material flow, sensor cleanliness, actuator response, and calibration status. Software is important, but it is not the most common first cause.

When is it time to ask the manufacturer for support?

When instability keeps returning after routine checks, calibration, and maintenance, or when several system points show repeatable errors at the same time.
